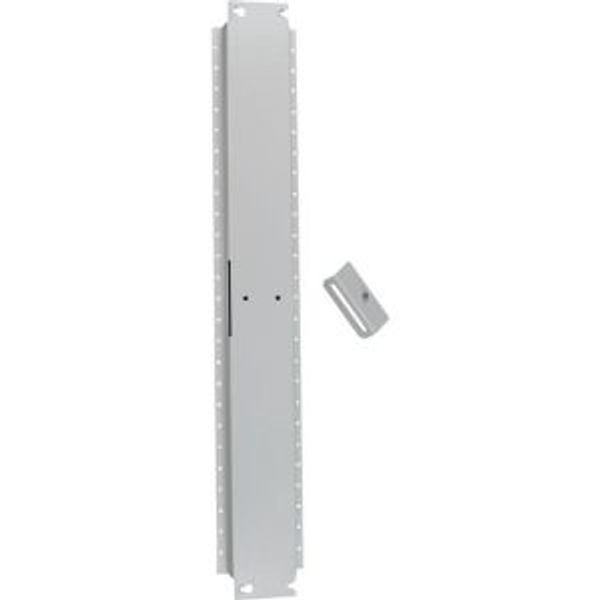

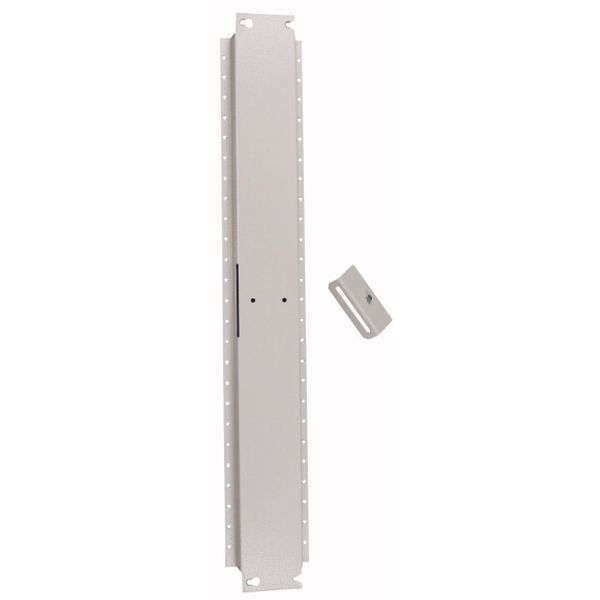

Vertical/Middle add-on connection Element MSW H=1560mm, white
Tik užsakymas
Kaina (be PVM):
29,53 €
EAN: 4015081109913
MPN: 111430
Pakuotė: 1
Numatomas pristatymo laikas į mūsų sandėlį (apytiksliai):
4-6 weeks
Technical Information
| Prekės būklė | Nauja |
| Gamintojo pavadinimas | BP-MSL-MSW-15-W Vertical/Middle add-on connection Element MSW H=1560mm, white |
| Prekės ženklas | EATON |
| Kategorijos |
Mounting Сomponents
|
| Kilmės šalis* | CZ |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Suderintos sistemos kodas | 8538 9099 00 |
| Modelis | Montavimo rinkinys |
| Pastato, skirto dėžei įmontuoti, plotis | 0 mm |
| Pastato, skirto dėžei įmontuoti, gylis | 0 mm |
| Tinka pastato korpuso aukščiui | 1560 mm |
Pakavimo informacija
| Pakavimo lygis 1 | 4015081109913 |
Kiti techniniai duomenys
| Spalva | Baltas |
| Plotis | 85 mm |
| Aukštis | 1510 mm |
| Gylis | 55 mm |
| RAL numeris | 9016 |
| Maks. apkrovos galia | 0 kg |
| Medžiaga | Metalas |
Aprašymas
Vertical/center add-on element, BP-MSL-MSW, height 1560mm, vertical add-on element between 2 distribution boards installed next to each other, includes screws for using MSW assembly side panels, for surface-mounted distribution board IP30, add-on configuration with BPZ-SP-...-MSW side panel, 1 kit of side panels, used for add-on configurations, to get the max. door opening angle, the left distribution board must have a door that closes on the left and the right distribution board must have a door that closes on the right, can be combined with BP-MFL for horizontal distribution board mounting, material characteristic: sheet steel , powder-spray painted, RAL 9016, equipment supplied: 1 add-on element, 2 mounting elements, various mounting accessories
