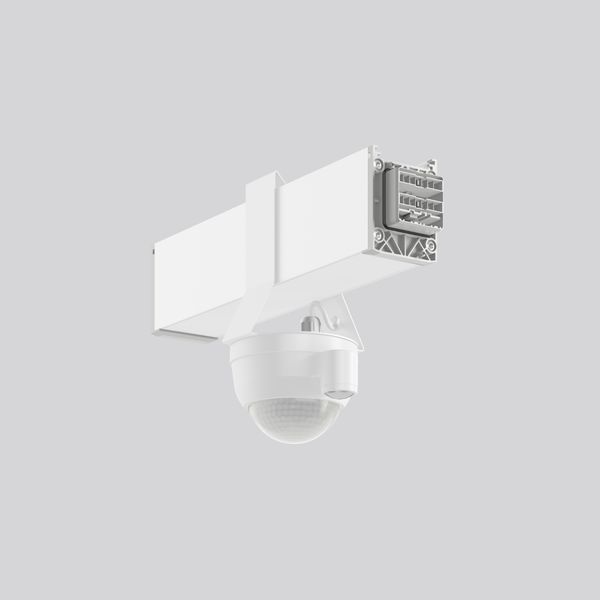

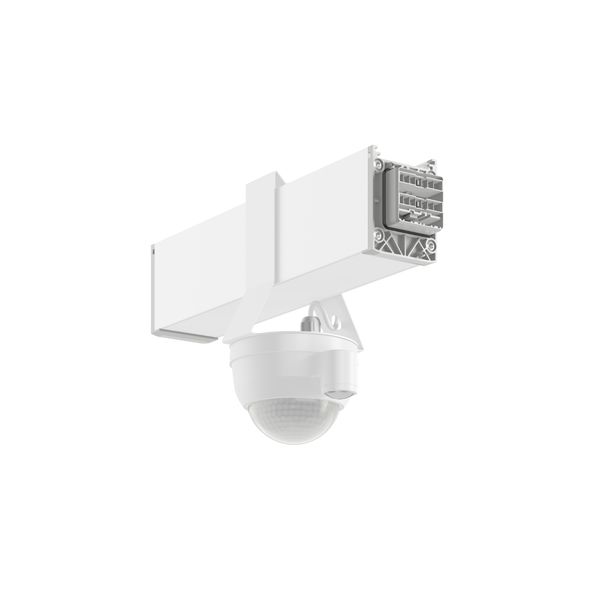

Sensor L 330 B 165 H 120 colour: white 220 - 240 V
Tik užsakymas
Kaina (be PVM):
512,79 €
EAN: 4051859963776
MPN: 9503C2.002.700.000
Pakuotė: 1
Numatomas pristatymo laikas į mūsų sandėlį (apytiksliai):
4-6 weeks
Technical Information
| Prekės būklė | Nauja |
| Gamintojo pavadinimas | Sensor L 330 B 165 H 120 colour: white 220 - 240 V |
| Prekės ženklas | RZB |
| Kategorijos |
Šviestuvų valdikliai
|
| Kilmės šalis* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Suderintos sistemos kodas | 8536 5003 00 |
| Saugos klasė | I |
| Plotis | 165 mm |
| Modelis | Statinis |
| Aukštis | 120 mm |
| Korpusas | Plastikinis korpusas |
| Ilgis | 330 mm |
| Paviršinis montavimas | Yes |
| Įstatytas | No |
| Tinka naudoti lauke | No |
| Saugos laipsnis (IP) | IP54 |
| Geležinkelio montavimo Vokietijos standartas DIN | No |
Pakavimo informacija
| Pakavimo lygis 1 | 4051859963776, 4051859963776 |
Atsisiuntimai
Aprašymas
Module including Passive Infrared (PIR) sensor for movement and ambient light. Simple, tool-free installation of system profiles using separate accessories for cable, chain or ceiling suspension. Tool-free connection and mechanical connectors to secure. 14-poles LINEDO connector (5 x 2.5 mm² / 9 x 1.5 mm²) for additional applications in light management or for the integration of emergency lighting. Phase can be set via patended bridge without opening the luminaire. Pre-assembled connector for DALI line. Light and movement sensor: DALI-2 sensor can be individually positioned ± 1 m over the length of the system profile. Housing of non-flammable, halogen-free plastic (polycarbonate). Detection range: 30x19 m. Light sensor range: 10-2500 lx. Installation height: 5-16 m. Slave version: Extends the detection range of a master. Switching pulse to master module when movement is detected, independent of ambient brightness. Pulse interval 2 or 9 s. Communication with master only possible with 14-pole wiring. Please order supply module, connection and mounting accessories separately.
