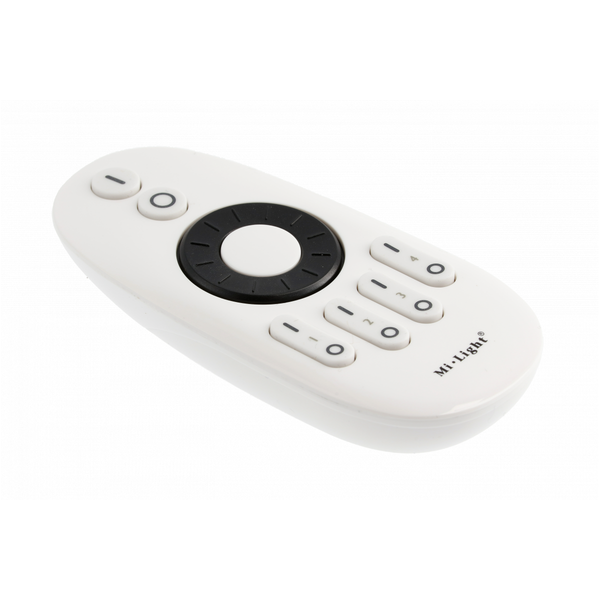

Remote control for radio controller MONO, 4-zone image 1
GTV Lighting

Valdiklio nuotolinio valdymo pultas MONO, 4-zone

Tik užsakymas
EAN: 5902801200502
MPN: LD-KONML-MONO-PIL
Pakuotė: 1
Dėžė: 100
Padėklas: 4800
Kaina (be PVM)
10,69 €
per unità
Quantità minima d’ordine: 1
Numatomas pristatymo laikas į mūsų sandėlį: 2-4 weeks
Ši kaina galioja iki kito kainoraščio arba tol, kol baigsis atsargos

Informazioni tecniche

Prekės būklė Nauja
Gamintojo pavadinimas Remote control for radio controller MONO, 4-zone
Prekės ženklas GTV Lighting
Kategorijos LED tvarkyklės
Suderintos sistemos kodas 8526 9200 00
ETIM EC002710
Saugos laipsnis (IP) IP20

Pakavimo informacija

Pakavimo lygis 1 5902801200502
Pakavimo lygis 2 5902801200557
Pakavimo lygis 3 2012801297402
Pakavimo lygis 4 2012801297341

Atsisiuntimai

Naudojimo instrukcijos

Aprašymas

A remote light control system consists of three essential components:

  • 12/24V LED driver
  • Single zone controller
  • Control device (remote control or control panel)

A remote control is one of the two available control devices. The remote control can be used to control 4 zones independent of each other. Many single controllers responsible for a single light point can be assigned to each zone.

The remote control is powered by two AAA batteries (not included in a set).

On the remote we will find:

  • MASTER switch – which makes it possible to turn on and off all zones at the same time
  • Knob - with which we can dim and brighten the strip
  • 4 switches - responsible for activating each zone separately.

Zone coding

It is necessary to determine to which zone of the remote control the controller is to be coded. Then we disconnect the power supply of the controller for at least 10 seconds. After reconnecting the power supply, the ON button of the selected zone should be pressed 3 times within 3 seconds. Correct pairing is signalled by the LED strip blinking 3 times.

To activate the night lighting function, that is, the maximum dimming of the LED strip, the OFF Master or OFF button of the selected zone should be held.

  • Communication range up to 30 m;
  • Possibility to pair 4 controllers;
  • Night lighting function;
  • Batteries are not included in a set.
