EATON

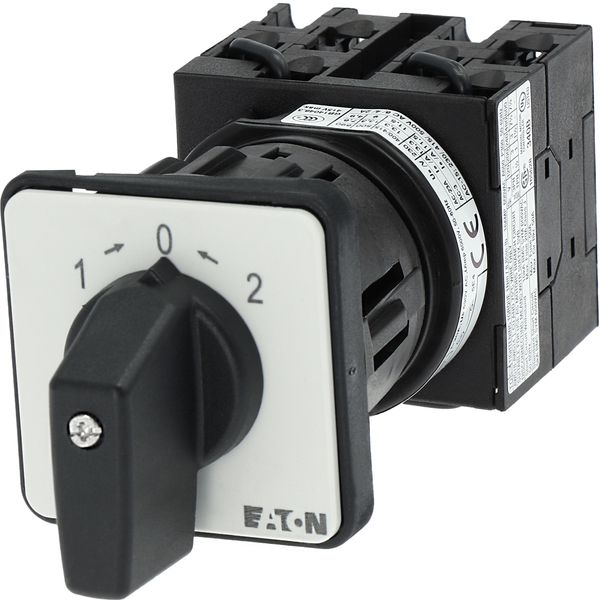

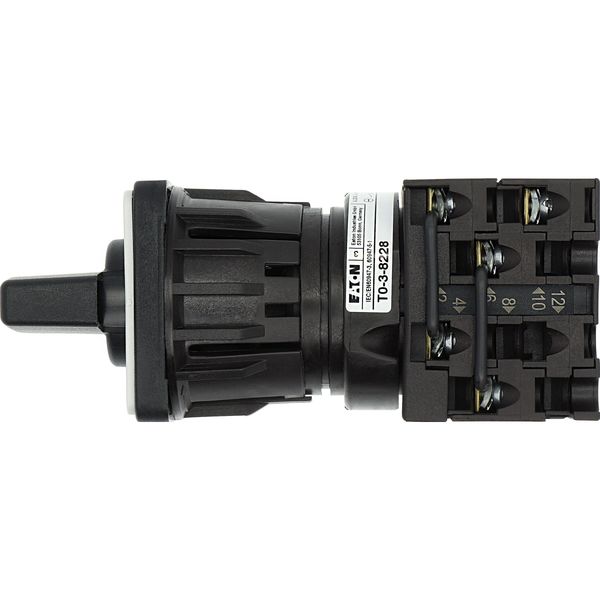

Reversing switches, T0, 20 A, centre mounting, 3 contact unit(s), Contacts: 5, 45 °, momentary, With 0 (Off) position, with spring-return from both di

Yra sandėlyje: Ne Pardavėjo atsargos: Ne Minimalus užsakymo kiekis: 1
Kaina (be PVM):
24,23 €
Ši kaina galioja iki 24.12.25
EAN: 4015080483342
MPN: 048334
Pakuotė: 1
Numatomas pristatymo laikas į mūsų sandėlį (apytiksliai): 4-6 weeks

Technical Information

Prekės būklė Nauja
Gamintojo pavadinimas T0-3-8228/EZ Reversing switches, T0, 20 A, centre mounting, 3 contact unit(s), Contacts: 5, 45 °, momentary, With 0 (Off) position, with spring-return from both di
Prekės ženklas EATON
Kategorijos Įrengimas
Off-load Switches
Kilmės šalis GB
Suderintos sistemos kodas 8536 5080 00
Modelis Reversinis jungiklis
Nominali operacinė galia, kai AC-3, 400 V 4 kW
Nominali nuolatinė srovė Iu 20 A
Polių skaičius 3
Nominali operacinė srovė Ie, kai AC-3, 400 V 11.5 A
Su 0 (išjungta) padėtimi Yes
Priekinio šono apsaugos laipsnis (IP) IP65
Kontrolinio elemento tipas Trumpas praskečiamas griebtuvas

Pakavimo informacija

Pakavimo lygis 1 4015080483342

Kiti techniniai duomenys

Papildomų kontaktų, kurie įprastai yra atviri, skaičius 0
Papildomų kontaktų, kurie įprastai yra uždaryti, skaičius 0
Korpuso medžiaga Plastikinis
Su atitraukimu į 0 padėtį Yes
Papildomų kontaktų kaip keičiamųjų kontaktų skaičius 0
Pagrindinės srovės grandinės jungties tipas Varžto jungtis
Tinka montavimui ant žemės No
Tinka priekinio montavimo 4 skylėms Yes
Tinka paskirstymo plokštės instaliacijai No
Tinka tarpiniam montavimui No
Pilnas įrenginys korpuse No
NEMA apsaugos laipsnis, priekinis 12

Aprašymas

Reversing switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 5, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions to 0, front plate: 1>0<2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
