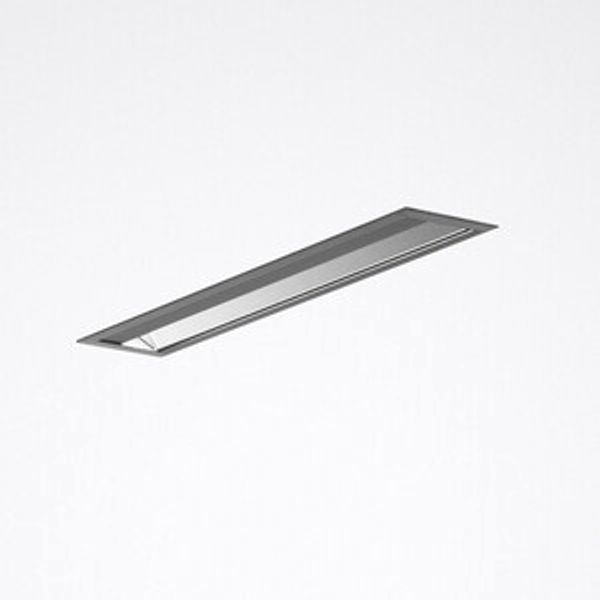

Recessed luminaires Finea C Reflector Black rectangular ETDD 10W 542lm Wall-Wash (WW) IK03 3 SDCM

Individual luminaire of the recessed light channel system for architectural lighting. The luminaire is part of a range of recessed, surface-mounted and suspended luminaires with a harmonised appearance. Systemically relevant accessories such as installation/swivel brackets and end caps are included in the scope of delivery. For recessing in plasterboard wall or ceiling openings. With all-round edge for covering the cut edge of the recess opening. For detailed information about mounting dimensions, see the current mounting instructions. With specular reflector and lateral-emission LED system. Wallwasher with asymmetric light distribution. Luminaire luminous flux and light color fixed. Luminaire luminous flux 542 lm, connected load 10 W, maximum luminous efficiency of luminaire 54 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L90(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Channel elements of extruded aluminium profile, end caps of plastic (PMMA). Surface coated black (RAL 9005). Dimensions (L x W): 300 mm x 64 mm, luminaire height 62 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 1,6 kg. Mains connection is achieved using a 5-pole connection terminal to 1.5 mm2 . With electronic transformer, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire can be equipped with the Monitoring Ready (MOR) functionality on request. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
