Post-top luminaires Lumega IQ 70N CLO (normal) Lens Grey ET 134W 16000lm 70 asymmetric wide (AB7L) IP66 IK09 5 SDCM 7843940

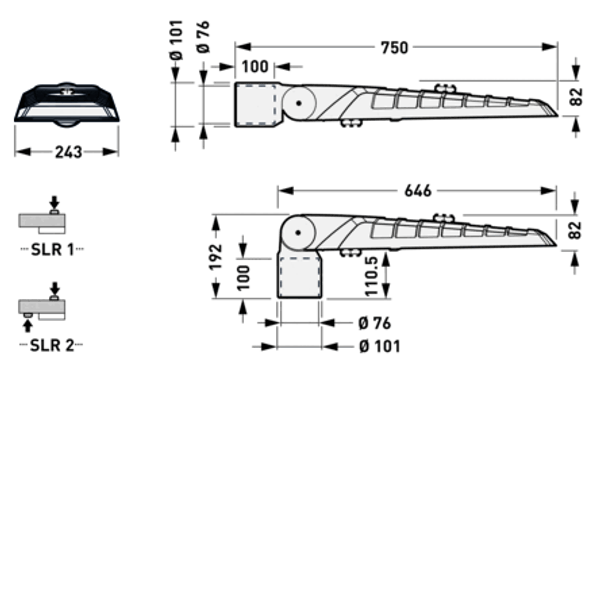

Next-generation post-top and bracket-mounted LED luminaire with clear lines and an attractive silhouette. With an intelligent label for quick access to luminaire information by means of QR code. With power reduction via control circuit. Switching off a control circuit causes the luminaire luminous flux to be set to 50%. With SLR (Smart Lighting Ready) equipment for retrospective integration of components for light management systems. Standardised Zhaga-compliant bases are at the top on the luminaire head and on the lower cover. The luminaire is designed for the D4i standard and Zhaga/D4i certified. Post-top and bracket-mounted on or to post spigot Ø 76 mm. Inclination angle of 0° to 90°, can be set in 5° steps, scaled. Simple and rapid conversion from post-top to bracket-mounted luminaire via one screw accessible from outside.. Walls installation is possible via accessories to be ordered separately. Mast mounting via two stainless steel fixing screws in accordance with EN 60598-2-3. Also suitable for mounting to masts with spigot Ø 42, 48 and 60 mm via reduction pieces to be ordered separately. Passender Mast auf Anfrage. As MLT version (Multi-Lens Technology), consisting of highly efficient UV and temperature-resistant lens systems in 4-fold configurations. With asymmetric wide light distribution. Further beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Retrofitting a rear / side shield is possible as an accessory to be ordered separately. Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). LED system consists of 12 MLT LED modules each with 4 LEDs. Luminaire luminous flux 16000 lm, connected load 133 W, maximum luminous efficiency of luminaire 120 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 5 SDCM. Mean rated service life Lclo(tq 25 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). The rated luminous flux of the luminaire can be reduced by 50% using an app and NFC (Near Field Communication). n the delivery state, 100% of the rated luminous flux is set. Luminaire body of die-cast aluminium. Swivel unit made of UV and weather resistant ASA. Luminaire body (main colour) and swivel unit (additional colour) in contrasting colours. Primary color anthracite (DB 703), additional color silver-grey (RAL 9006). With metal effect, highly weather resistant. The fastening elements are coated in the housing colour. CG chamber cover of die-cast aluminium, opens without tools via draw catch. The E-block can be removed without tools. The replaceable cover made of heat-treated non-laminated safety glass is securely fastened to the luminaire housing with four stainless steel fastening elements. The cover is equipped with a durable, UV-resistant polyurethane sealing. Sea weather-suitable coating on request. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP66, impact resistance level in accordance with IEC 62262: IK09. Mast available upon request. Windage area fw 0,140 m2. Weight: 8,1 kg. With connected cable, length 10,000 mm. With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
