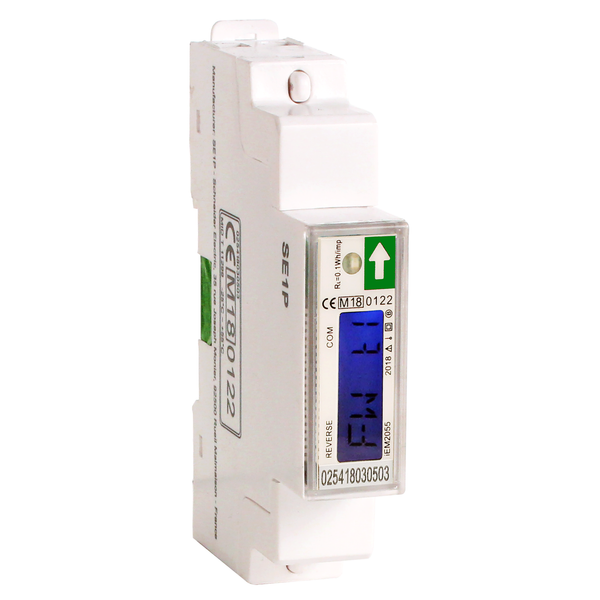

modular single phase power meter iEM2055 - 230V - 45A with communication Modbus - MID
Technical Information
| Prekės būklė | Nauja |
| Gamintojo pavadinimas | Power meter iEM2055 single-phase 230V 45A MID Modbus |
| Prekės ženklas | Schneider Electric |
| Kategorijos |
Elektros skaitikliai
|
| Kilmės šalis* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Suderintos sistemos kodas | 9028 3011 00 |
| Montavimo metodas | Sumontuotas |
| Plotis | 0 mm |
| Aukštis | 0 mm |
| Gylis | 0 mm |
| Dažnio diapazonas | 45-55 Hz |
| Maks. srovė (Imax) | 45 A |
| Modulinių tarpų skaičius plotyje | 1 |
| Saugos laipsnis (IP) | Kita |
| Impulsų dažnis | 0.01-10000 Imp/kWh (kvarh) |
| Poliškumas | Viena fazė |
| Nominali įtampa (Un) N-L | 195-253 V |
| Nominali srovė (In) | 45 A |
Pakavimo informacija
| Pakavimo lygis 1 | 3606489566548 |
| Pakavimo lygis 2 | 3606489566545 |
| Pakavimo lygis 3 | 3606489566546 |
Kiti techniniai duomenys
| Modelis | Tiesioginis matavimas |
| Tinka | Pirkti |
| Rodmens tipas | Skaitmeninis |
| Bendras skaičius (skaitiklis) | 6 |
| Matuoklio tipas | Elektroninis |
| Sąsajos tipas | Modbus |
| Kilovatvalandžių skaitiklio energijos tipo versija | Efektinė galia ir reaktyvioji galia |
| Kilovatvalandžių skaitiklio tarifinis modelis | Du tarifai |
| Tarifo kontrolė | Išorinis |
| Išleidimo mechanizmas | No |
| Kalibruotas | Yes |
| Patvirtinimas | Matavimo priemonių direktyva |
| Impulsinė išvestis | Elektrinis |
| Impulsų tipas | S0 |
| Tikslumo klasė | B |
| Apkrovos profilio matavimas | No |
| EEC40 parašas | No |
| Su blokavimo kodu | No |
| NEMA apsaugos laipsnis | 2 |
Atsisiuntimai
Aprašymas
The Acti9 iEM2100 series energy meters offer is a single-phase DIN rail-mounted energy meters fitted for basic metering. This product family can be used to monitor power consumption for each sector, unit or workshop and manage electrical installation for building management. It feature a 8-character LCD display and red LED indicator to display measured electrical parameters. Providing Class 1 active energy accuracy per IEC 62053-21 standard, the meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. Suitable for a 230VAC network, with a supply voltage range of 96 to 276 VAC at 50Hz or 60Hz. Direct connect current measurement up to 63A with 32 samples per cycle only in a Single Phase and Neutral configuration. Communication protocol is Modbus RTU with 3 wire terminal support, no additional communication ports. You will have the possibility to switch between 2 tariffs thanks to a dedicated tariff switching input. Product dimensions are as follows: width 36 mm, depth 64 mm, height 90 mm and product weight 175 g. This version is compliant with the standard EN 50470-3 class B, Measuring Instruments Directive (MID). Compatible with power management software to take advantage of the IoT digital power installation.
