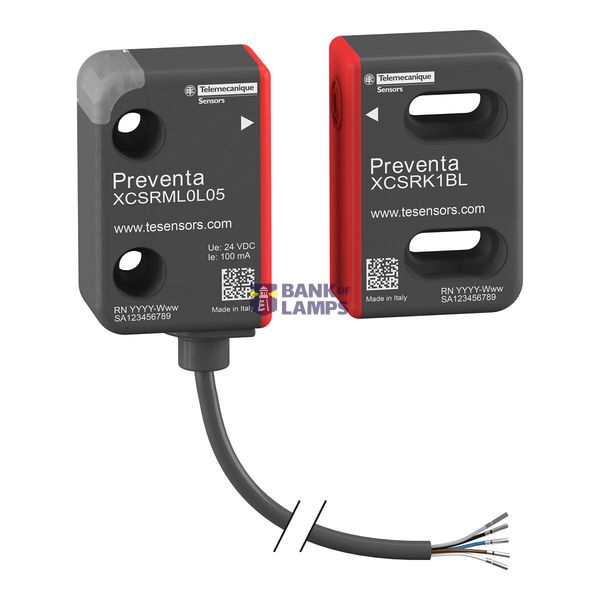

Miniature Safety RFID switch, generic coded, single model, 5-pin, 5m c image 1
Telemecanique

Miniature Safety RFID switch, generic coded, single model, 5-pin, 5m c

Tik užsakymas
EAN: 3666916099827
MPN: XCSRML0L05
Pakuotė: 1
Dėžė: 8
No pricing modes available.

Informazioni tecniche

Prekės būklė Nauja
Gamintojo pavadinimas Miniature Safety RFID switch, generic coded, single model, 5-pin, 5m c
Prekės ženklas Telemecanique
Kategorijos Padėties jungikliai
Kilmės šalis* IT
* Faktinė kilmės šalis gali skirtis priklausomai nuo pristatymo partijos. Norėdami patvirtinti konkrečią kilmės šalį, susisiekite su savo paskyros vadybininku.
Suderintos sistemos kodas 8536 5080 00
ETIM EC002593

Pakavimo informacija

Pakavimo lygis 1 3666916099827
Pakavimo lygis 2 3666916099824

Atsisiuntimai

RoHS deklaracija Kiti Giluminė nuoroda REACH DOC CE deklaracija (atitikties deklaracija CE) Techninis vadovas

Aprašymas

This RFID safety switch is part of the Preventa XCS range, a Telemecanique Sensors' offer of safety detection solutions. It is identified by a factory individual code which supports one unique factory pairing. The switch is designed for both standalone (EDM) and daisy-chain connection. Thanks to its miniature format, it can adjust even in tight places. It has an assured operating distance of 10mm and an assured release distance of 25mm​. It is equippedwith a 8-pin M12 remote connector at the end of a 0.10m-long cable. Its dimensions are 28.5mm (width) x 18mm (depth) x 42mm (height). It weighs 0.056kg. RFID safety switches are used on machines with low inertia. It is Tüv, cULus, FCC and ECOLAB certified and complies to CE and UKCA standards. It can be connected to a XCSRZY1 Y connector when in first position of the daisy-chain or to an XCSRZY2 Y connector elsewhere in the chain. Contactless safety switches are specifically designed for industrial machines fitted with doors, covers or guards with imprecise guiding. They are ideally suited for machines subjected to frequent washing or liquid spray. Safety switches protect operators by controlling the safe opening and interlocking of guards and covers in your installations.
