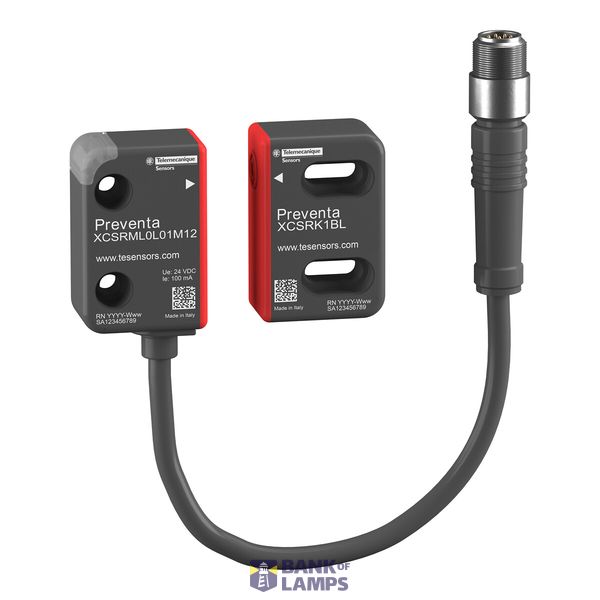

Miniature RFID safety switch, Single model, unlimited pairing, M12-8pi image 1
Telemecanique

Miniature RFID safety switch, Single model, unlimited pairing, M12-8pi

Tik užsakymas
EAN: 3666916070543
MPN: XCSRML0L01M12
Pakuotė: 1
Dėžė: 28
Kaina (be PVM)
90,96 €
per unità
Quantità minima d’ordine: 1
Numatomas pristatymo laikas į mūsų sandėlį: 21-26 weeks
Ši kaina galioja iki kito kainoraščio arba tol, kol baigsis atsargos

Informazioni tecniche

Prekės būklė Nauja
Gamintojo pavadinimas Miniature RFID safety switch, Single model, unlimited pairing, M12-8pi
Prekės ženklas Telemecanique
Kategorijos Padėties jungikliai
Kilmės šalis* IT
* Faktinė kilmės šalis gali skirtis priklausomai nuo pristatymo partijos. Norėdami patvirtinti konkrečią kilmės šalį, susisiekite su savo paskyros vadybininku.
Suderintos sistemos kodas 8536 5080 00
ETIM EC002593

Pakavimo informacija

Pakavimo lygis 1 3666916070543
Pakavimo lygis 2 3666916070540

Atsisiuntimai

Giluminė nuoroda REACH Kiti RoHS deklaracija Techninis vadovas DOC CE deklaracija (atitikties deklaracija CE)

Aprašymas

This RFID safety switch is part of the Preventa XCS range, a Telemecanique Sensors' offer of safety detection solutions. It is identified by a generic code with low-coding level which does not require any pairing. It is a single model switch for point to point connection. Thanks to its miniature format, it can adjust even in tight places. It has an assured operating distance of 10mm and an assured release distance of 25mm​. It is equipped with a 5-pin M12 remote connector at the end of a 0.10m-long cable. Its dimensions are 28.5mm (width) x 18mm (depth) x 42mm (height). It weighs 0.056kg. RFID safety switches are used on machines with low inertia. It is Tüv, cULus, FCC and ECOLAB certified and complies to CE and UKCA standards. It operates with a 24Vdc power supply. Contactless safety switches are specifically designed for industrial machines fitted with doors, covers or guards with imprecise guiding. They are ideally suited for machines subjected to frequent washing or liquid spray. Safety switches protect operators by controlling the safe opening and interlocking of guards and covers in your installations.
