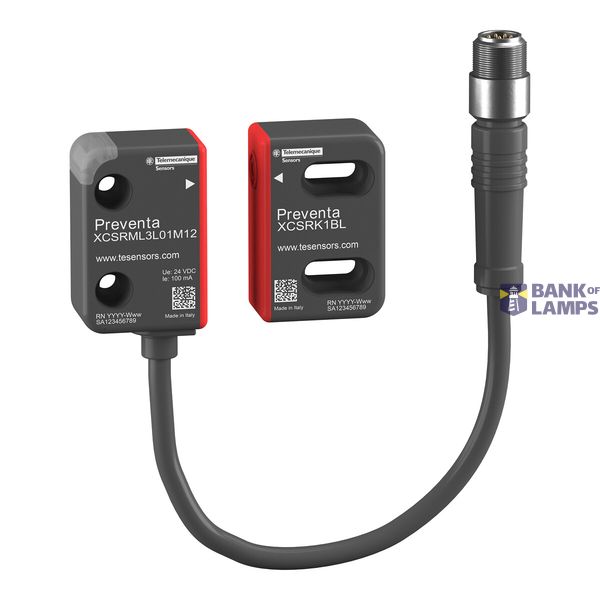

Miniature RFID safety switch, Daisy Chain + model, unlimited pairing, image 1
Telemecanique

Miniature RFID safety switch, Daisy Chain + model, unlimited pairing,

Tik užsakymas
EAN: 3666916070482
MPN: XCSRML3L01M12
Pakuotė: 1
Dėžė: 28
Kaina (be PVM)
100,15 €
per unità
Quantità minima d’ordine: 1
Numatomas pristatymo laikas į mūsų sandėlį: 21-26 weeks
Ši kaina galioja iki kito kainoraščio arba tol, kol baigsis atsargos

Informazioni tecniche

Prekės būklė Nauja
Gamintojo pavadinimas Miniature RFID safety switch, Daisy Chain + model, unlimited pairing,
Prekės ženklas Telemecanique
Kategorijos Padėties jungikliai
Kilmės šalis* IT
* Faktinė kilmės šalis gali skirtis priklausomai nuo pristatymo partijos. Norėdami patvirtinti konkrečią kilmės šalį, susisiekite su savo paskyros vadybininku.
Suderintos sistemos kodas 8536 5080 00
ETIM EC002593

Pakavimo informacija

Pakavimo lygis 1 3666916070482
Pakavimo lygis 2 3666916070489

Atsisiuntimai

Giluminė nuoroda REACH Kiti Techninis vadovas RoHS deklaracija

Aprašymas

This RFID safety switch is part of the Preventa XCS range, a Telemecanique Sensors' offer of safety detection solutions. It is identified by a generic code with low-coding level which does not require any pairing. The switch is designed for both standalone (EDM) and daisy-chain connection. Thanks to its miniature format, it can adjust even in tight places. It has an assured operating distance of 10mm and an assured release distance of 25mm​. It is equipped with an 8-pin M12 remote connector . Its dimensions are 28.5mm (width) x 18mm (depth) x 42mm (height). It weighs 0.044kg. RFID safety switches are used on machines with low inertia. It is Tüv, cULus, FCC and ECOLAB certified and complies to CE and UKCA standards. It can be connected to a XCSRZY1 Y connector when in first position of the daisy-chain or to an XCSRZY2 Y connector elsewhere in the chain. Contactless safety switches are specifically designed for industrial machines fitted with doors, covers or guards with imprecise guiding. They are ideally suited for machines subjected to frequent washing or liquid spray. Safety switches protect operators by controlling the safe opening and interlocking of guards and covers in your installations.
