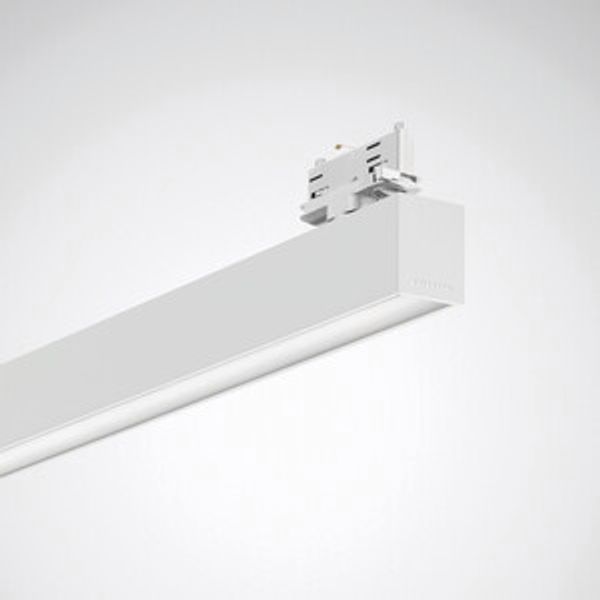

Light Channel Systems Finea Diffuser White rectangular ET 24W 2505lm Lambertian (L) IK03 3 SDCM image 1
TRILUX

Light Channel Systems Finea Diffuser White rectangular ET 24W 2505lm Lambertian (L) IK03 3 SDCM

Yra sandėlyje: Ne Pardavėjo atsargos: Ne Minimalus užsakymo kiekis: 1
Kaina (be PVM):
395,04 €
Ši kaina galioja iki 24.12.25
EAN: 4018242952922
MPN: 9002288246
Pakuotė: 1
Padėklas: 70
Numatomas pristatymo laikas į mūsų sandėlį (apytiksliai): 4-6 weeks

Technical Information

Prekės būklė Nauja
Gamintojo pavadinimas Light Channel Systems Finea Diffuser White rectangular ET 24W 2505lm Lambertian (L) IK03 3 SDCM
Prekės ženklas TRILUX
Kategorijos Lentiniai šviestuvai
Kilmės šalis SI

Pakavimo informacija

Pakavimo lygis 1 4018242952922, 4018242952922
Pakavimo lygis 2 4018242952922

Aprašymas

Single light channel luminaire for 3-circuit track, NORDIC system. Mounting and electrical connection to 3-circuit track according to DIN EN 60570 via 3-circuit track adapter. The opal, finely structured, homogeneously illuminated PMMA diffuser is flush with the surface. With Lambertian light distribution. Luminaire luminous flux and light color fixed. Luminaire luminous flux 2505 lm, connected load 24 W, maximum luminous efficiency of luminaire 104 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L90(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body of extruded aluminium profile. Surface coated white (RAL 9016). Dimensions (L x W): 1056 mm x 50 mm, luminaire height 62 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 2,1 kg. With electronic control gear unit, switchable The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
