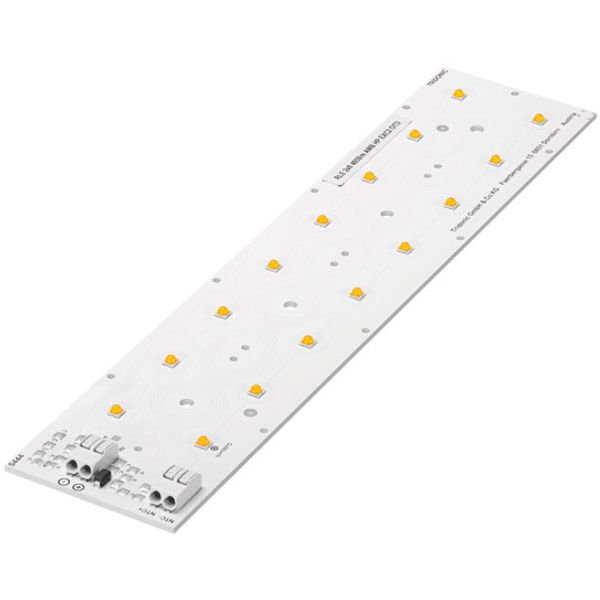

LED modules image 1
LED modules image 2
LED modules thumbnail 1
LED modules thumbnail 2
Tridonic

LED modules

Tik užsakymas
Kaina (be PVM):
19,01 €
Ši kaina galioja iki kito kainoraščio arba tol, kol baigsis atsargos
EAN: 9006210763729
MPN: 28003869
Pakuotė: 1
Numatomas pristatymo laikas į mūsų sandėlį: 2-4 weeks

Technical Information

Prekės būklė Nauja
Gamintojo pavadinimas LED modules
Prekės ženklas Tridonic
Kategorijos LED moduliai
Suderintos sistemos kodas 8539 5100 00
ETIM EC000996
Plotis 50 mm
Ilgis 121 mm
Saugos laipsnis (IP) IP00
Lempos įtampa 20.1-27.4 V
Šviesos srautas 1260-1850 lm

Pakavimo informacija

Pakavimo lygis 1 9006210763729, 9006210763729

Kiti techniniai duomenys

Energijos taupymo klasė A+
Darbinė įtampa (diapazonas) 0 V
Darbinė srovė 500-1050 mA
Reikalinga išorinė pavara No

Aprašymas

Suitable for harsh and humid outdoor conditions ¦ Tested acc. to salt spray test (IEC 60068-2-52) and harmful gas test (GR-63-CORE) ¦ Huge performance temperature range from -40 ... +105 °C ¦ Surge tested (+/- to earth) 6 kV with Tridonic LED driver ¦ Integrated NTC for overtemperature protection ¦ Zhaga Book 15 compliant ¦ For use with standard 2x2 lenses (e.g. LEDiL Strada 2x2) ¦ Push-in terminals for simple and quick wiring ¦ HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output ¦ Long lifetime up to 100,000 hours ¦ 8 years guarantee (conditions at www.tridonic.com) ¦ Useful luminous flux 3,700 lm at Irated and tp = 25 °C ¦ Efficacy of the LED module 111 lm/W at Irated and tp = 25 °C ¦ Amber light colour (yellowish), similar to high-pressure sodium lamps ¦ Enables better visibility in fog due to better penetration and less glare ¦ Ideal for harbor or coastal lighting, roads in mountainous areas and conflict zones such as pedestrian crossings ¦ Suited for natural habitats due to insect-friendly light spectrum ¦ Decorative lighting e.g. in Old Town Areas or Star Parks ¦ Module dimension 49.5 x 121.4 mm and 49.5 x 223 mm ¦ Installation of the module together with lens in the luminaire by means of an M3 screw
