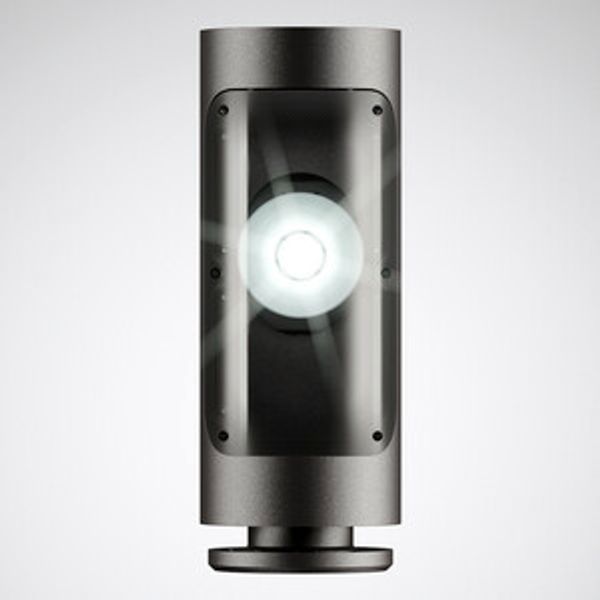

Floodlight / Projectors CS19 CLO (normal) Reflector Anthracite ETDD 26W 3200lm 70 rotationally sym. wide (RB) IP66 IK06 3 SDCM

Spotlight module of the modular, decorative light column system CS19. For post-top mounting onto compatible system supporting column. In single applications with supporting column or in combination with supporting column, to be used as luminaire head and spotlight module. Compatible system supporting column as separate unit in various lengths, or alternatively available with baseplate or underground support. With rotationally symmetric wide light distribution. Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). The chip-on-board LED system with reflector can be pivoted in 5° steps in a range of +/- 15°. Luminaire luminous flux 3200 lm, connected load 24 W, maximum luminous efficiency of luminaire 133 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). A smartbox for the devices is embedded in the steel column module in protection rating-compliant way. With a clear, highly impact-resistant PMMA cover. Colour anthracite (DB 703). Sea weather-suitable coating on request. Module size Ø 193,7 mm , h = 520 mm. Other colours and anti-graffiti coating on request. The module can be rotated through 360° in the column. The high design standard of the column is underlined by concealed, invisible fastening elements of the segments. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP66, impact resistance level in accordance with IEC 62262: IK06. Windage area fw . Weight: 17,7 kg. With electronic transformer, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
