Electrical accessories Arimo Fit C White 4LV + 2LV 7714650 image 1
TRILUX

Electrical accessories Arimo Fit C White 4LV + 2LV 7714650

Yra sandėlyje: Ne Pardavėjo atsargos: Ne Minimalus užsakymo kiekis: 1
Kaina (be PVM):
278,25 €
Ši kaina galioja iki 24.12.25
EAN: 4018242584475
MPN: 7714650
Pakuotė: 1
Padėklas: 150
Numatomas pristatymo laikas į mūsų sandėlį (apytiksliai): 4-6 weeks

Technical Information

Prekės būklė Nauja
Gamintojo pavadinimas Electrical accessories Arimo Fit C White 4LV + 2LV 7714650
Prekės ženklas TRILUX
Kategorijos Šviestuvų priedai
Kilmės šalis DE

Pakavimo informacija

Pakavimo lygis 1 4018242584475, 4018242584475
Pakavimo lygis 2 4018242855025

Aprašymas

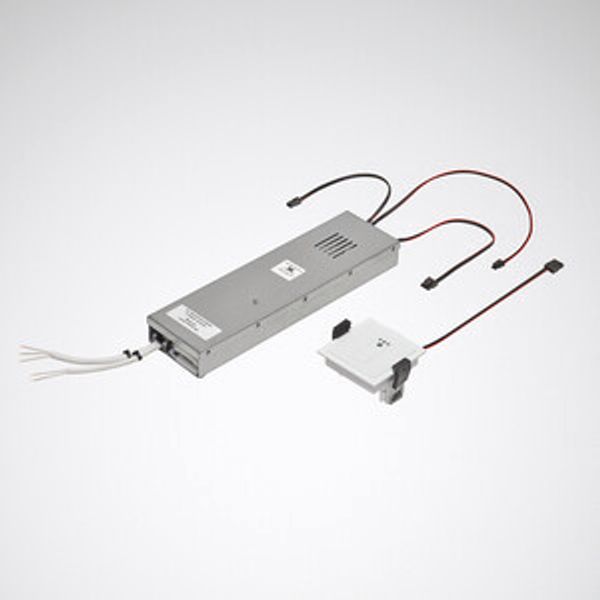

Emergency light system for ceiling recessing with an emergency light operation time of 3 hours. 4 status LEDs with a transparent lens are embedded in the square cover. The ceiling recessing module is fastened by means of spring clips. The ceiling recessing module is connected to the emergency inverter via an installed cable with plug connector. The emergency inverter is protected by a sheet steel housing and can be placed on the intermediate ceiling. Dimensions (L x W): 200 mm x 80 mm, height 31 mm. Depending on the luminaire, the connection to the control gear unit and luminaire is made via rapid plug connection or plug contacts on the components. Suitable for both DALI-dimmable and switchable luminaires. Cover made of plastic, colour white, 75 mm x 75 mm. For ceiling cut-outs: 68 mm x 68 mm. Ceiling thickness 1 mm - 25 mm, Recess depth ≥ 50 mm. Depending on the combined luminaire of the ArimoFit (Sky)... series, the following luminaire luminous flux levels are achieved in emergency light operation: M52 = 475 lm, M46 = 500 lm, M48 = 500 lm, M57 = 500 lm, M59 = 500 lm, M73 = 575 lm, M84 = 575 lm.
