Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection

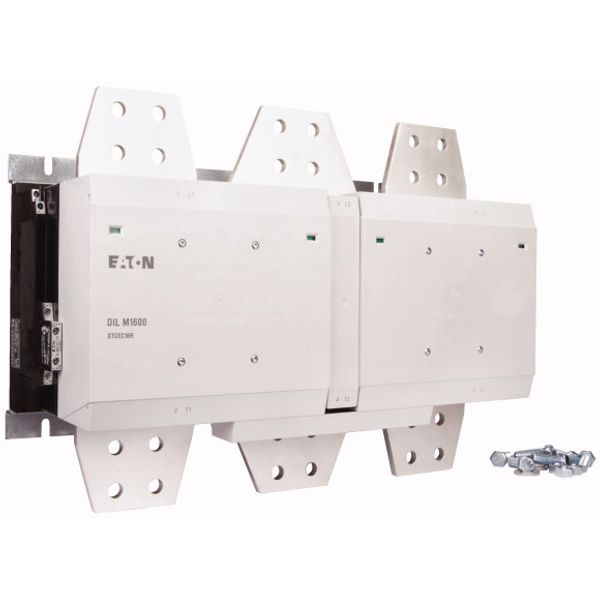

DILM1600/22(RAW250) Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection image 1

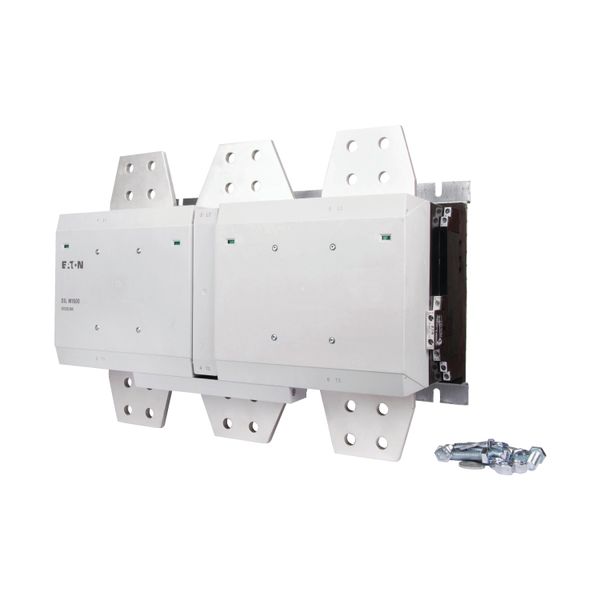

DILM1600/22(RAW250) Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection image 2

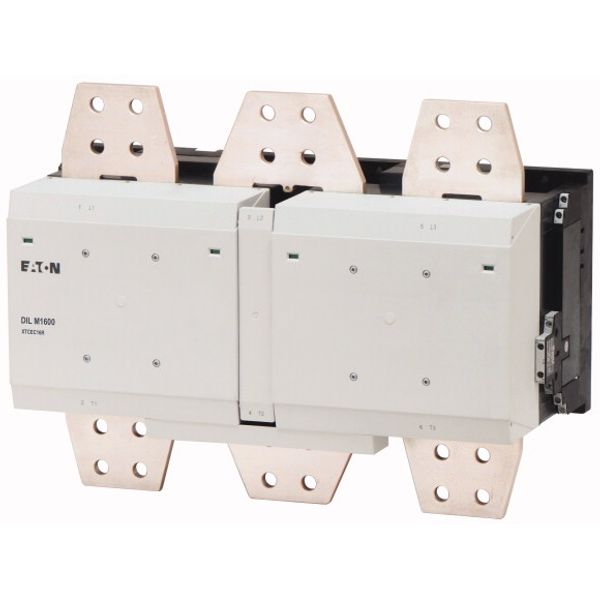

DILM1600/22(RAW250) Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection image 3

DILM1600/22(RAW250) Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection image 4

DILM1600/22(RAW250) Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection image 5

DILM1600/22(RAW250) Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection image 6

DILM1600/22(RAW250) Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection image 7

DILM1600/22(RAW250) Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection image 8

DILM1600/22(RAW250) Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection image 9

DILM1600/22(RAW250) Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection image 10

DILM1600/22(RAW250) Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection image 11

DILM1600/22(RAW250) Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection image 12

DILM1600/22(RAW250) Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection image 13

DILM1600/22(RAW250) Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection image 14

DILM1600/22(RAW250) Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection image 15

Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection

Name: DILM1600/22(RAW250) Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection
Brand: EATON
Price: 4935.460 EUR
Availability: PreOrder

Tik užsakymas

Kaina (be PVM):

4 935,46 €

Ši kaina galioja iki 24.12.26

EAN: 4015081064946

MPN: 106727

Pakuotė: 1

Numatomas pristatymo laikas į mūsų sandėlį (apytiksliai): 4-6 weeks

Technical Information

Prekės būklė	Nauja
Gamintojo pavadinimas	DILM1600/22(RAW250) Contactor, 380 V 400 V 900 kW, 2 N/O, 2 NC, RAW 250, AC operation, Screw connection
Prekės ženklas	EATON
Kategorijos	AC Power Contactors
Kilmės šalis*	RO
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Suderintos sistemos kodas	8536 4900 00
Nominali operacinė galia, kai AC-3, 400 V	900 kW
Pagrindinių kontaktų, kurie įprastai yra atviri, skaičius	3
Įprastai uždarytų kontaktų, kurie yra pagrindiniai, skaičius	0
Nominali operacinė srovė Ie, kai AC-3, 400 V	1600 A
Nominali kontrolės maitinimo įtampa, kai AC 50 Hz	230-250 V
Nominali kontrolės maitinimo įtampa, kai AC 60 Hz	230-250 V
DC nominali kontrolės maitinimo įtampa	230-250 V
Pagrindinės srovės grandinės jungties tipas	Bėginė jungtis
Aktyvacijos įtampos tipas	Kintamoji ar nuolatinė srovė

Pakavimo informacija

Pakavimo lygis 1

4015081064946

Kiti techniniai duomenys

Modulinė versija	No
Papildomų kontaktų, kurie įprastai yra atviri, skaičius	2
Papildomų kontaktų, kurie įprastai yra uždaryti, skaičius	2
Nominali operacinė srovė Ie, kai AC-1, 400 V	2200 A
Nominali darbinė srovė Ie, esant AC-4, 400 V	1280 A
Nominali darbinė galia Ie, esant AC-4, 400 V	750 kW
Nurodytoji veikimo galia NEMA	895 kW

Aprašymas

Contactor, Application: Contactors for Motors, Comfort devices greater than 170 A, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Connection technique: Screw connection, Rated operational current AC-3 380 V 400 V: Ie= 1600 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 2200 A, Rated operational current AC-1 Conventional free air thermal current, 1 pole open: Ith= 4500 A , Max. rating for three-phase motors, 50 - 60 Hz AC-3 220 V 230 V: P= 500 kW, 380 V 400 V: P= 900 kW, 660 V 690 V: P= 1600 kW, Max. rating for three-phase motors, 50 - 60 Hz AC-4 220 V 230 V: P= 430 kW, 380 V 400 V: P= 750 kW, 660 V 690 V: P= 1300 kW, Can be combined with auxiliary contact: DILM820-XHI…, Contacts N/O = Normally open: 2 N/O, Contacts N/C = Normally closed: 2 NC, Instructions: integrated suppressor circuit in actuating electronics, 660 V, 690 V or 1000 V: not directly reversing, Voltage AC/DC: AC operation
