Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection

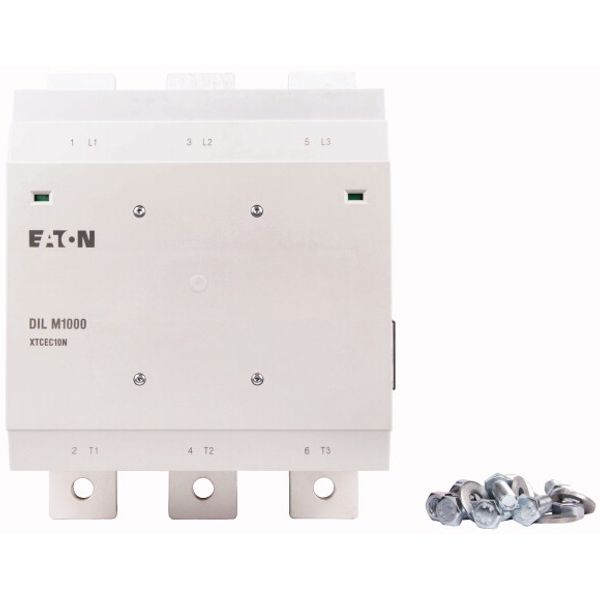

DILM1000/22(RAC500) Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection image 1

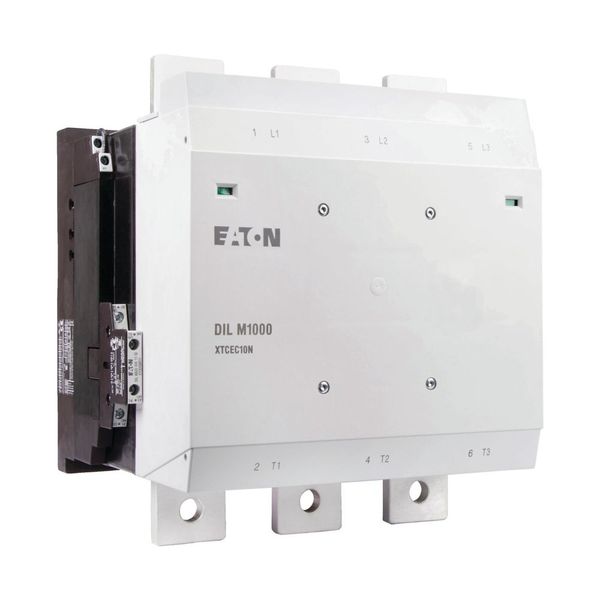

DILM1000/22(RAC500) Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection image 2

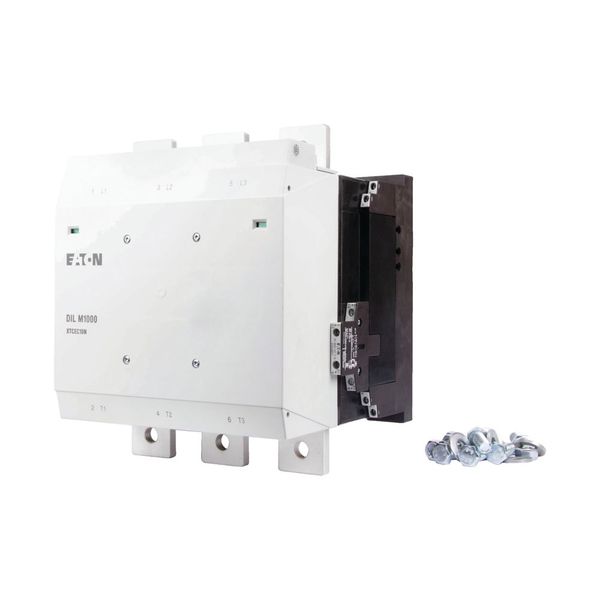

DILM1000/22(RAC500) Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection image 3

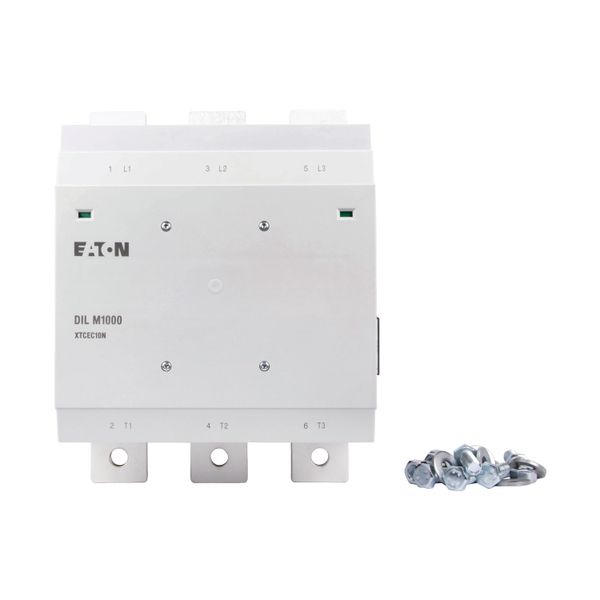

DILM1000/22(RAC500) Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection image 4

DILM1000/22(RAC500) Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection image 5

DILM1000/22(RAC500) Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection image 6

DILM1000/22(RAC500) Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection image 7

DILM1000/22(RAC500) Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection image 8

DILM1000/22(RAC500) Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection image 9

DILM1000/22(RAC500) Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection image 10

DILM1000/22(RAC500) Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection image 11

DILM1000/22(RAC500) Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection image 12

DILM1000/22(RAC500) Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection image 13

DILM1000/22(RAC500) Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection image 14

DILM1000/22(RAC500) Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection image 15

DILM1000/22(RAC500) Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection image 16

Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection

Name: DILM1000/22(RAC500) Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection
Brand: EATON
Price: 1924.710 EUR
Availability: PreOrder

Tik užsakymas

Kaina (be PVM):

1 924,71 €

Ši kaina galioja iki 24.12.26

EAN: 4015082719906

MPN: 271990

Pakuotė: 1

Numatomas pristatymo laikas į mūsų sandėlį (apytiksliai): 4-6 weeks

Technical Information

Prekės būklė	Nauja
Gamintojo pavadinimas	DILM1000/22(RAC500) Contactor, 380 V 400 V 560 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC and DC operation, Screw connection
Prekės ženklas	EATON
Kategorijos	AC Power Contactors
Kilmės šalis*	RO
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Suderintos sistemos kodas	8536 4900 00
Nominali operacinė galia, kai AC-3, 400 V	560 kW
Pagrindinių kontaktų, kurie įprastai yra atviri, skaičius	3
Įprastai uždarytų kontaktų, kurie yra pagrindiniai, skaičius	0
Nominali operacinė srovė Ie, kai AC-3, 400 V	1000 A
Nominali kontrolės maitinimo įtampa, kai AC 50 Hz	480-500 V
Nominali kontrolės maitinimo įtampa, kai AC 60 Hz	480-500 V
DC nominali kontrolės maitinimo įtampa	250-700 V
Pagrindinės srovės grandinės jungties tipas	Varžto jungtis
Aktyvacijos įtampos tipas	Kintamoji srovė

Pakavimo informacija

Pakavimo lygis 1

4015082719906

Kiti techniniai duomenys

Modulinė versija	No
Papildomų kontaktų, kurie įprastai yra atviri, skaičius	2
Papildomų kontaktų, kurie įprastai yra uždaryti, skaičius	2
Nominali operacinė srovė Ie, kai AC-1, 400 V	1225 A
Nominali darbinė srovė Ie, esant AC-4, 400 V	800 A
Nominali darbinė galia Ie, esant AC-4, 400 V	450 kW
Nurodytoji veikimo galia NEMA	596 kW

Aprašymas

Contactor, Application: Contactors for Motors, Comfort devices greater than 170 A, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Connection technique: Screw connection, Rated operational current AC-3 380 V 400 V: Ie= 1000 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 1225 A, Rated operational current AC-1 Conventional free air thermal current, 1 pole open: Ith= 2500 A , Max. rating for three-phase motors, 50 - 60 Hz AC-3 220 V 230 V: P= 315 kW, 380 V 400 V: P= 560 kW, 660 V 690 V: P= 1000 kW, Max. rating for three-phase motors, 50 - 60 Hz AC-4 220 V 230 V: P= 260 kW, 380 V 400 V: P= 450 kW, 660 V 690 V: P= 780 kW, Can be combined with auxiliary contact: DILM820-XHI…, Contacts N/O = Normally open: 2 N/O, Contacts N/C = Normally closed: 2 NC, Instructions: integrated suppressor circuit in actuating electronics, 660 V, 690 V or 1000 V: not directly reversing, Voltage AC/DC: AC and DC operation
