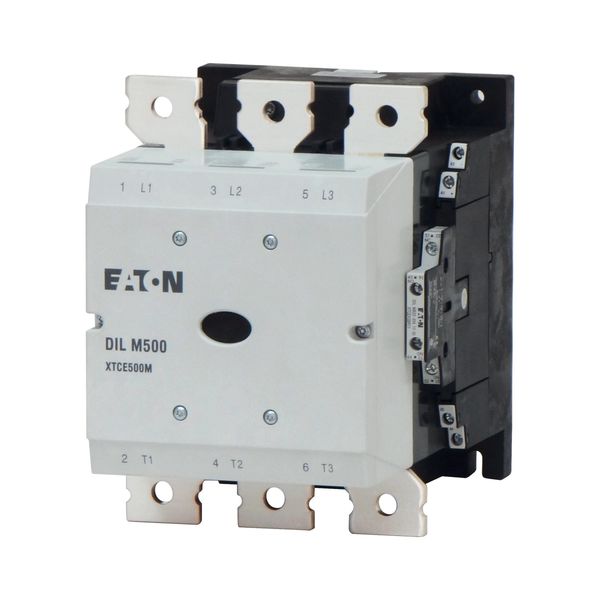

Contactor, 380 V 400 V 265 kW, 2 N/O, 2 NC, RA 250: 230 - 250 V 40 - 6
Tik užsakymas
Kaina (be PVM):
2 259,76 €
EAN: 4015082849481
MPN: 284948
Pakuotė: 1
Numatomas pristatymo laikas į mūsų sandėlį (apytiksliai):
4-6 weeks
Technical Information
| Prekės būklė | Nauja |
| Gamintojo pavadinimas | Contactor, 380 V 400 V 265 kW, 2 N/O, 2 NC, RA 250: 230 - 250 V 40 - 6 |
| Prekės ženklas | EATON |
| Kategorijos |
AC Power Contactors
|
| Kilmės šalis* | RO |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Suderintos sistemos kodas | 8536 4900 00 |
| Nominali operacinė srovė Ie, kai AC-3, 400 V | 500 A |
| Aktyvacijos įtampos tipas | Kintamoji srovė |
Pakavimo informacija
| Pakavimo lygis 1 | 4015082849481 |
Kiti techniniai duomenys
| Modulinė versija | No |
| Nominali operacinė srovė Ie, kai AC-1, 400 V | 800 A |
Aprašymas
Contactor, Application: Contactors for Motors, Special-purpose devices rated for currents greater than 170 A, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Connection technique: Screw connection, Rated operational current AC-3 380 V 400 V: Ie= 500 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 800 A, enclosed: Ith= 600 A , Rated operational current AC-1 Conventional free air thermal current, 1 pole open: Ith= 1625 A, enclosed: Ith= 1500 A, Max. rating for three-phase motors, 50 - 60 Hz AC-3 220 V 230 V: P= 155 kW, 380 V 400 V: P= 265 kW, 660 V 690 V: P= 300 kW, Max. rating for three-phase motors, 50 - 60 Hz AC-4 220 V 230 V: P= 112 kW, 380 V 400 V: P= 200 kW, 660 V 690 V: P= 240 kW, Can be combined with auxiliary contact: DILM820-XHI…, Contacts N/O = Normally open: 2 N/O, Contacts N/C = Normally closed: 2 NC, Instructions: integrated suppressor circuit in actuating electronics, 660 V, 690 V or 1000 V: not directly reversing, Voltage AC/DC: AC operation
