Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection

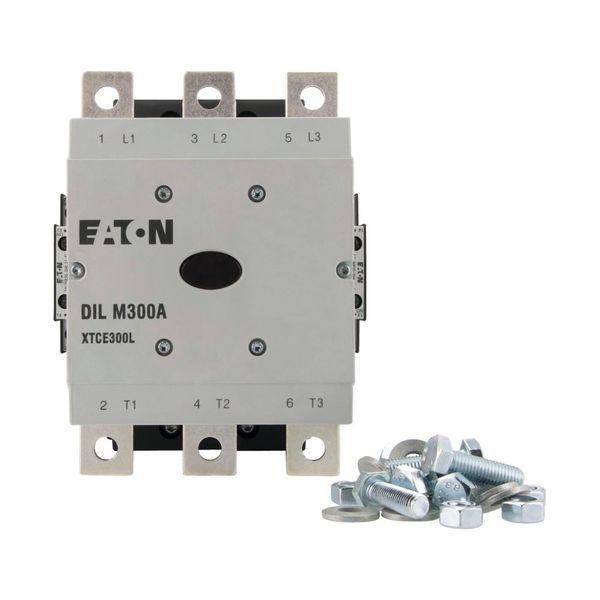

DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection image 1

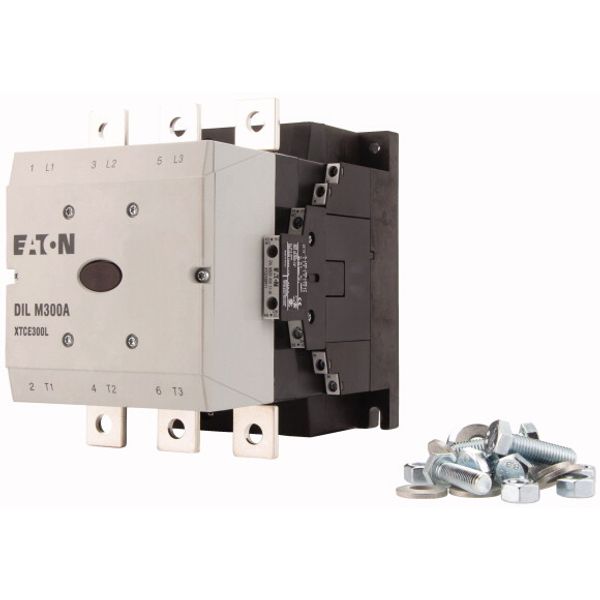

DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection image 2

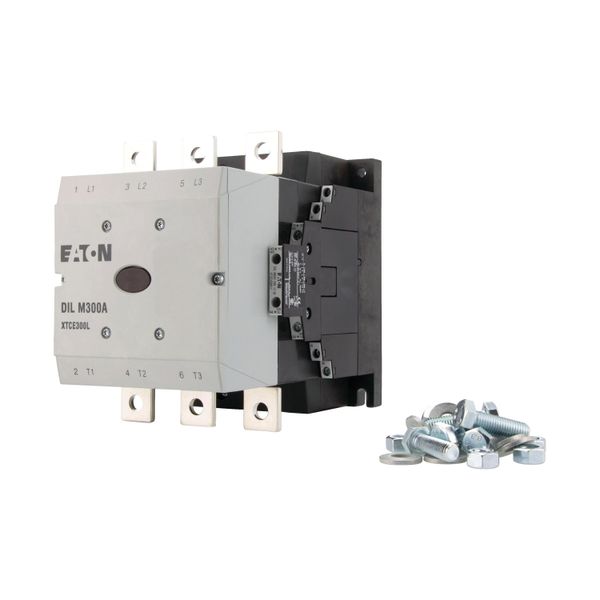

DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection image 3

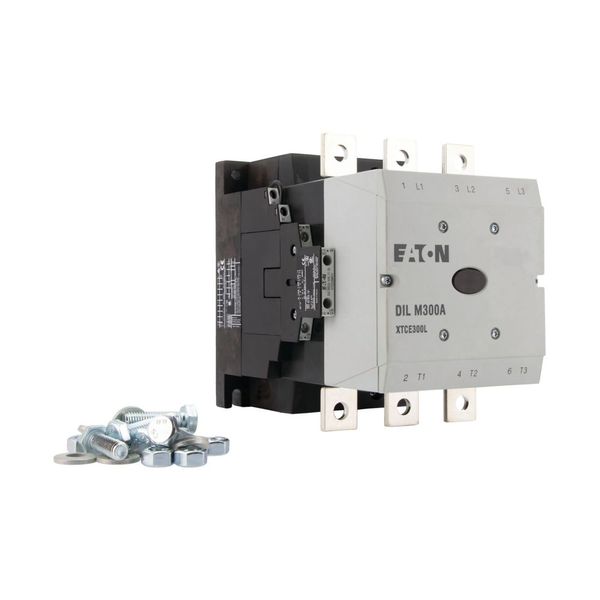

DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection image 4

DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection image 5

DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection image 6

DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection image 7

DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection image 8

DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection image 9

DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection image 10

DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection image 11

DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection image 12

DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection image 13

DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection image 14

DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection image 15

DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection image 16

Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection

Name: DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection
Brand: EATON
Price: 672.530 EUR
Availability: PreOrder

Tiekėjo sandėlyje

Kaina (be PVM):

672,53 €

Ši kaina galioja iki 31.12.25

EAN: 4015081363346

MPN: 139556

Pakuotė: 1

Numatomas pristatymo laikas į mūsų sandėlį (apytiksliai): 4-6 weeks

Technical Information

Prekės būklė	Nauja
Gamintojo pavadinimas	DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC, AC and DC operation, Screw connection
Prekės ženklas	EATON
Kategorijos	AC Power Contactors
Kilmės šalis	RO
Suderintos sistemos kodas	8536 4900 00
Nominali operacinė galia, kai AC-3, 400 V	160 kW
Pagrindinių kontaktų, kurie įprastai yra atviri, skaičius	3
Įprastai uždarytų kontaktų, kurie yra pagrindiniai, skaičius	0
Nominali operacinė srovė Ie, kai AC-3, 400 V	300 A
Nominali kontrolės maitinimo įtampa, kai AC 50 Hz	110-250 V
Nominali kontrolės maitinimo įtampa, kai AC 60 Hz	110-250 V
DC nominali kontrolės maitinimo įtampa	110-250 V
Pagrindinės srovės grandinės jungties tipas	Bėginė jungtis
Aktyvacijos įtampos tipas	Kintamoji ar nuolatinė srovė

Pakavimo informacija

Pakavimo lygis 1

4015081363346

Kiti techniniai duomenys

Modulinė versija	No
Papildomų kontaktų, kurie įprastai yra atviri, skaičius	2
Papildomų kontaktų, kurie įprastai yra uždaryti, skaičius	2
Nominali operacinė srovė Ie, kai AC-1, 400 V	490 A
Nominali darbinė srovė Ie, esant AC-4, 400 V	240 A
Nominali darbinė galia Ie, esant AC-4, 400 V	132 kW
Nurodytoji veikimo galia NEMA	186 kW

Aprašymas

Contactor, Application: Contactors for Motors, Comfort devices greater than 170 A, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Connection technique: Screw connection, Rated operational current AC-3 380 V 400 V: Ie= 300 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 490 A, enclosed: Ith= 315 A, Rated operational current AC-1 Conventional free air thermal current , 1 pole open: Ith= 875 A, enclosed: Ith= 785 A, Max. rating for three-phase motors, 50 - 60 Hz AC-3 220 V 230 V: P= 90 kW, 380 V 400 V: P= 160 kW, 660 V 690 V: P= 170 kW, Max. rating for three-phase motors, 50 - 60 Hz AC-4 220 V 230 V: P= 75 kW, 380 V 400 V: P= 132 kW, 660 V 690 V: P= 137 kW, Can be combined with auxiliary contact: DILM820-XHI…, Contacts N/O = Normally open: 2 N/O, Contacts N/C = Normally closed: 2 NC, Instructions: integrated suppressor circuit in actuating electronics, 660 V, 690 V or 1000 V: not directly reversing, Voltage AC/DC: AC and DC operation
