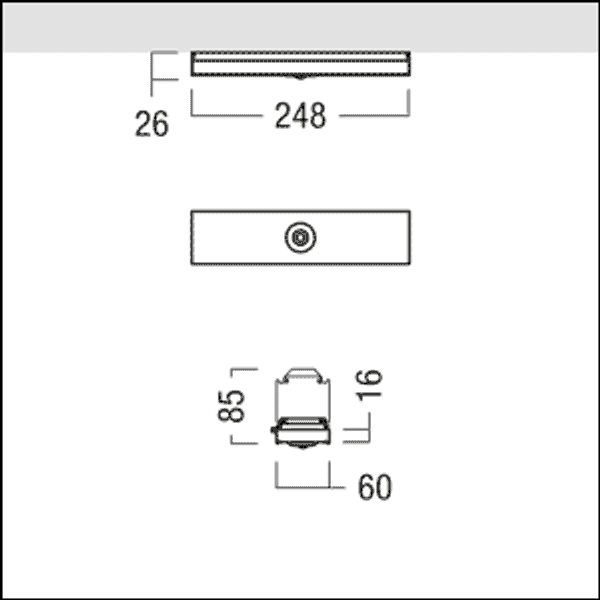

basicDIM ILD G2 MC TEC-GP SR - TEC-GP with sensor and DALI control unit image 1

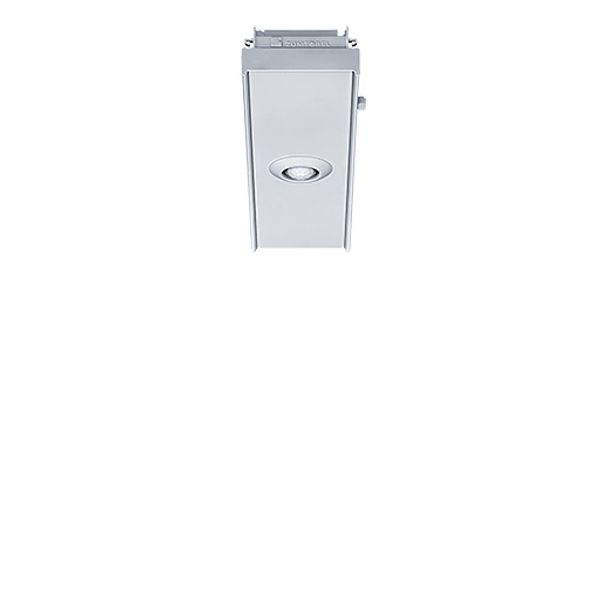

basicDIM ILD G2 MC TEC-GP SR - TEC-GP with sensor and DALI control unit image 2
basicDIM ILD G2 MC TEC-GP SR - TEC-GP with sensor and DALI control unit thumbnail 1
basicDIM ILD G2 MC TEC-GP SR - TEC-GP with sensor and DALI control unit thumbnail 2
Zumtobel

TEC-GP with sensor and DALI control unit

Yra sandėlyje: Ne Pardavėjo atsargos: Ne Minimalus užsakymo kiekis: 1
Kaina (be PVM):
Kaina pagal užklausą
Ši kaina galioja tol, kol baigsis atsargos
EAN: 9010757198012
MPN: 22172574
Pakuotė: 1
Numatomas pristatymo laikas į mūsų sandėlį (apytiksliai): Pagal užklausą

Technical Information

Prekės būklė Nauja
Gamintojo pavadinimas basicDIM ILD G2 MC TEC-GP SR - TEC-GP with sensor and DALI control unit
Prekės ženklas Zumtobel
Kategorijos Šviestuvų priedai
Kilmės šalis AT
Suderintos sistemos kodas 9405 9900 00
Priedo tipas Judesio jutiklis

Pakavimo informacija

Pakavimo lygis 1 9010757198012, 9010757198012

Atsisiuntimai

Giluminė nuoroda REACH DOC CE deklaracija (atitikties deklaracija CE) RoHS deklaracija Pardavimo brošiūra

Aprašymas

The TECTON module with integrated basicDIM ILG G2 Wireless Sensor and DALI control unit is ideal for industry, logistics, offices and education. The sheet steel adapter is pre-painted in silver and enables tool-free installation via two side levers. The set consists of a PIR sensor (height 5-8 m) with integrated DALI control module and two DALI bus supplies, which enable additional power of 126 mA for further sensors and luminaires. The module controls DALI luminaires via a broadcast signal, without individual addressing. It can be expanded with up to 8 additional sensors (MSENS TEC-GP) which contribute to motion detection, while light control is implemented via the light sensor of the basicDIM ILD G2. Take into account 9 mA per additional sensor and 2 mA per DALI luminaire. With a maximum of 8 additional sensors, 27 luminaires can still be controlled. In delivery state the system has pre-activated motion detection and daylight-dependent light control with predefined time lags. An optional IR remote control (article no. 28003484) enables all the main parameters to be set. Further details can be found in the data sheet for the basicDIM ILD G2 sensor (article no. 28002119). The module must not be combined with other DALI control units or further basicDIM ILD G2 modules. Temperature range from 0°C to +50°C; protection rating: IP20; dimensions: 248 x 60 x 16 mm; weight: 0.33kg
