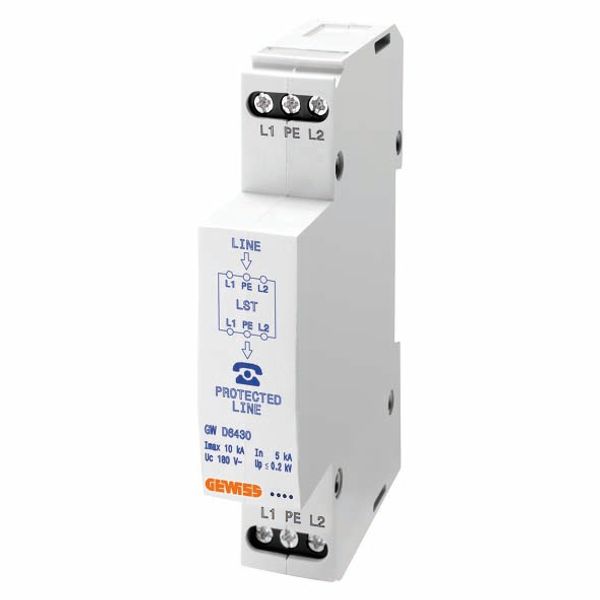

LST - SURGE PROTECTIVE DEVICE - FOR TELECOM AND DATA LINES - 10KA 50V - 1 MODULO
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
77,66 €
EAN: 8011564775053
MPN: GWD6430
Package: 1
Pallet: 1392
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | LST - SURGE PROTECTIVE DEVICE - FOR TELECOM AND DATA LINES - 10KA 50V - 1 MODULO |
| Brand | GEWISS |
| Categories |
Lighting protection
|
| Harmonized System Code | 8536 1090 00 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Connection 1 | Clamp |
| Frequency | 3 MHz |
| With remote signalling contact | No |
| Explosion-tested version | No |
| Max. continuous voltage AC | 180 V |
| Nominal discharge surge current (8/20) | 0.1 kA |
| Voltage protection level core/core | 200 V |
| Voltage protection level core/earth | 200 V |
| Signalling at the device | None |
| Max. continuous voltage DC | 5 V |
| Degree of protection (IP) | IP20 |
| Nominal voltage AC | 50 V |
| Pro-active thermo-control | No |
| Assembly width | 17.5 mm |
| Signal disconnection | - |
Packing details
| Packing level 1 | 8011564775053 |
| Packing level 2 | 8011564775053 |
Downloads
Description
90 AM Range Modular accessories - The 90 AM range, in addition to auxiliaries common for the all circuit breakers, comprises many modular accessories for the protection, command, programming, measurement and signalling in electrical systems.
