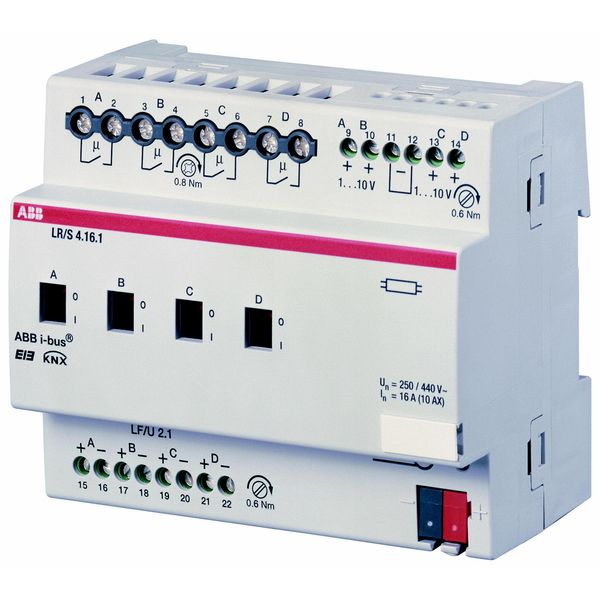

LR/S 4.16.1 LR/S4.16.1 Light Controller, 4-fold, 1-10 V, MDRC
Order only
Price (excl. VAT):
899,72 €
per pcs
EAN: 4016779664899
MPN: 2CDG110088R0011
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | LR/S 4.16.1 LR/S4.16.1 Light Controller, 4-fold, 1-10 V, MDRC |
| Brand | ABB |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Harmonized System Code | 8538 9091 00 |
| Mounting method | DRA (DIN-rail adapter) |
| Number of outputs | 4 |
| Max. switching current (resistive load) | 16 A |
| Bus system KNX | Yes |
| Max. switching power | 2300 W |
| With bus connection | Yes |
| Width in number of modular spacings | 6 |
| Other bus systems | None |
| Degree of protection (IP) | IP20 |
| Bus system KNX radio | No |
Packing details
| Packing level 1 | 4016779664899 |
Other Technical data
| Bus system radio frequent | No |
| Bus system Powernet | No |
| Max. control current | 100 mA |
| Number of inputs for light sensor | 4 |
| Bus system LON | No |
| Substation input | No |
| Local operation/hand operation | Yes |
| With LED indication | Yes |
| Interface 1-10 V | Yes |
| Radio frequent bidirectional | No |
| Min. depth of built-in installation box | 64.5 mm |
