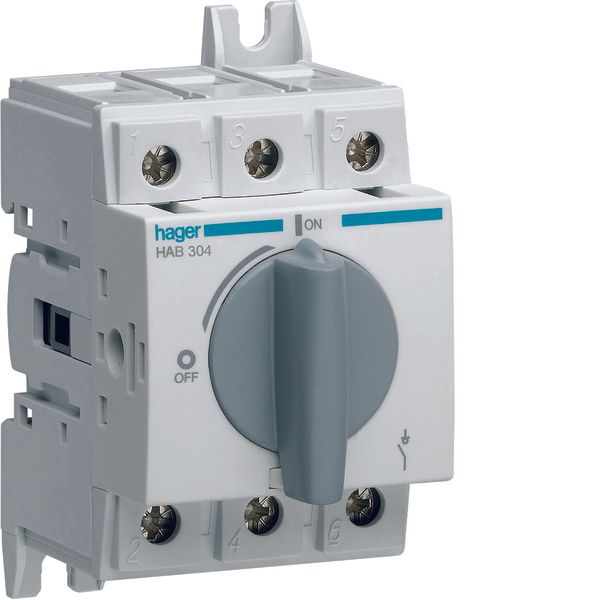

Load break switch 3P 40A

Name: Load break switch 3P 40A
Brand: Hager
Price: 52.051 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

52,051 € per pcs

This price is valid until 31.12.25

EAN: 3250613140250

MPN: HAB304

Package: 1

Pallet: 576

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	Load break switch 3P 40A
Brand	Hager
Categories	Installation Switch Disconnectors (AC)
Harmonized System Code	8536 3030 00
Rated permanent current Iu	40 A
Number of poles	3
Rated operating voltage	380-415 V
Degree of protection (IP), front side	IP20
Version as main switch	Yes
Version as safety switch	Yes
Version as maintenance-/service switch	Yes
Rated short-time withstand current lcw	1.26 kA

Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Conditioned rated short-circuit current Iq	50 kA
Number of auxiliary contacts as change-over contact	0
Number of switches	1
Interlockable	Yes
Motor drive integrated	No
Type of electrical connection of main circuit	Screw connection
Version as emergency stop installation	No
Type of control element	Short thumb-grip
Rated operation power at AC-23, 400 V	18 kW
Colour control element	Grey
Suitable for floor mounting	Yes
Suitable for front mounting 4-hole	No
Suitable for front mounting centre	No
Suitable for distribution board installation	Yes
Suitable for intermediate mounting	No
Max. rated operation voltage Ue AC	415 V
Motor drive optional	No
Voltage release optional	No
Device construction	Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V	40 A
Switching power at 400 V	26 kW
Version as reversing switch	No
Rated permanent current at AC-23, 400 V	40 A
Degree of protection (NEMA)	Other
