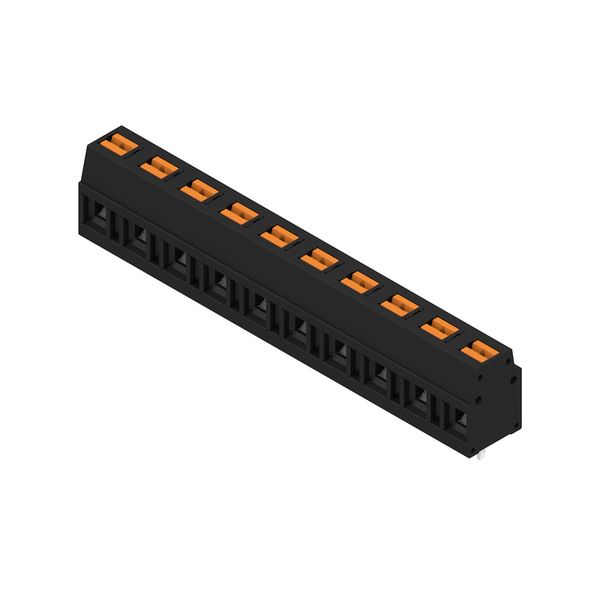

LMFV 7.50/10/90 3.5SN BK BX
In stock: No
Vendor stock: No
Minimal order quantity: 50
Price (excl. VAT):
3,57 €
Subtotal: 178,50 €
MOQ: 50
EAN: 4064675065647
MPN: 2787800000
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | LMFV 7.50/10/90 3.5SN BK BX |
| Brand | Weidmüller |
| Categories |
PCB Connectors & Terminals
|
| Country of origin | CN |
| Harmonized System Code | 8536 9010 00 |
| Rated voltage | 350 V |
| Rated surge voltage | 4 kV |
| Degree of protection (IP), mounted | IP20 |
| Angle PCB/conductor connection | 0°/180° (horizontal) |
| Rated current In | 24 A |
| Number of electrical connections | 10 |
Packing details
| Packing level 1 | 4064675065647 |
Other Technical data
| Height | 17.3 mm |
| Colour housing | Black |
| Operating temperature | -40-115 °C |
| Type of fastening | Solder |
| Inflammability class of insulation material according to with UL94 | V0 |
| Over voltage category | II |
| Pollution degree | 2 |
| Connection type conductor | Push-in clamp connection |
| Connection type PCB | Soldering connection |
| Length pin | 3.5 mm |
| Modular spacing connections | 7.5 mm |
| Type of banding | Other |
| Connectable conductor cross section solid-core | 0.2-2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.2-1.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.2-2.5 mm² |
| Material insulation body | Polyamide (PA) |
| Type of PCB fastening | Other |
Description
PCB terminal block (print terminal, board terminal) for simple and safe data transmission directly to the PCB.
