LLK15 LED 1500 1/6 25K KLEMME Z1
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LLK15 LED 1500 1/6 25K KLEMME Z1 |
| Brand | EATON |
| ETIM | EC002892 |
| Width | 188 mm |
| Colour housing | Grey |
| Colour rendering index CRI | 80-89 |
| Height/depth | 130 mm |
| Lamp type | LED exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Beam angle | Wide beam 41-80° |
| Colour temperature | 4000-5000 K |
| Max. system power | 56 W |
| Rated luminous flux according to IEC 62722-2-1 | 6.8 lm |
Packing details
| Packing level 1 | 4251510744489 |
Other Technical data
| Protection class | I |
| Outer diameter | 0 mm |
| Lamp holder | G13 |
| Conductor cross section | 1.5 mm² |
| Connection type | Cable |
| Voltage type | AC/DC |
| With movement sensor | No |
| Suitable for lamp power | 27 W |
| Type of grid | None |
| Type of control gear | Not required |
| Built-in width | 188 mm |
| Built-in diameter | 0 mm |
| With light sensor | No |
| Suitable for suspended mounting | Yes |
| Number of poles | 3 |
| Housing material | Plastic |
| Built-in length | 1.66 mm |
| Suitable for light line configuration | Yes |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric/asymmetric |
| Material cover | Plastic, transparent |
| Emergency power supply integrated | No |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 2 |
| Suitable for wall mounting | Yes |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Nominal current | 250 mA |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Photobiological safety according to EN 62471 | Other |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -20-40 °C |
| Filament test according to IEC 60695-2-11 | None |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Other |
| Dimming depending on control gear | No |
| Dimming DSI | No |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | 0 % |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 130 mm |
| Surface protection housing | Untreated |
| Power factor | 0.9 |
Description

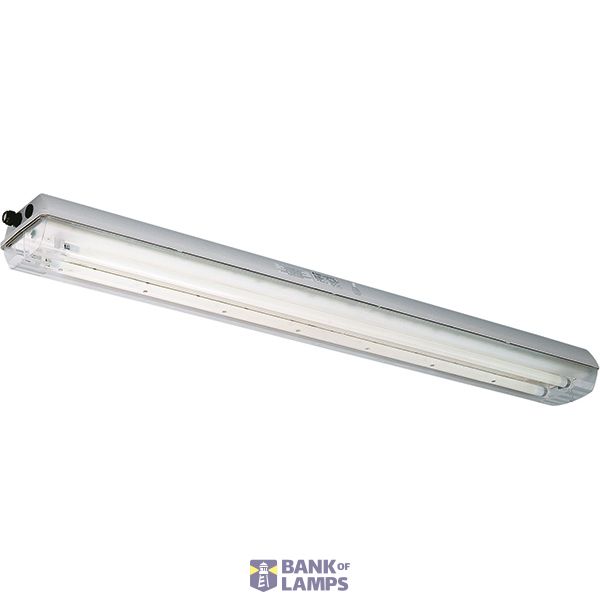

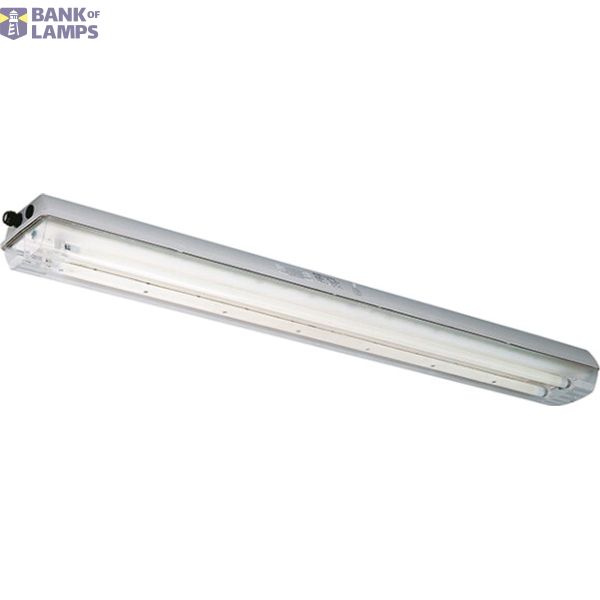

Industrial LED fitting LLK15 LED 1500 1/6 25K
