LLK 98036/36, zone 1
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LLK 98036/36, zone 1 |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 188 mm |
| Length | 1.36 mm |
| Height/depth | 130 mm |
| Lamp type | Fluorescent lamp |
| Impact strength | IK10 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Beam angle | Wide beam 41-80° |
Packing details
| Packing level 1 | 4250959903600 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Lamp holder | G13 |
| Conductor cross section | 6 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC |
| Suitable for lamp power | 36 W |
| Type of control gear | Electronic ballast |
| Adjustable | No |
| Number of poles | 6 |
| Housing material | Plastic |
| Material cover | Plastic, transparent |
| For Ex-zone gas | None |
| With light source | No |
| Suitable for number of lamps | 2 |
| With control gear | Yes |
| For Ex-Zone dust | None |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Degree of protection (NEMA) | Other |
| Light distributor | Reflector |
| Exchangeable control gear | No |
Description

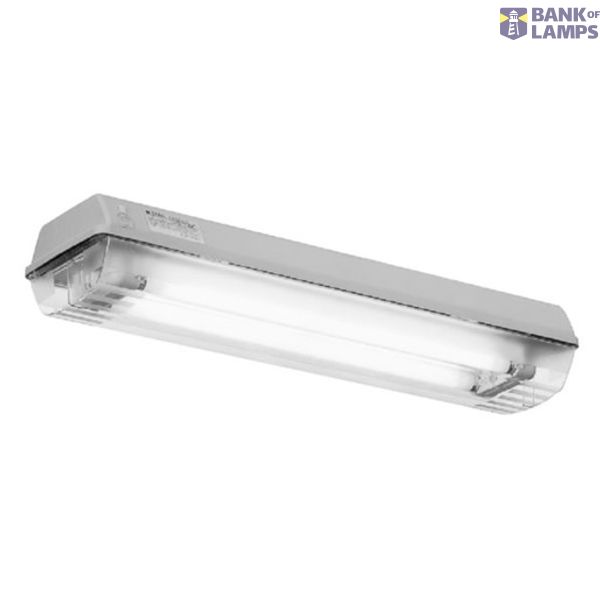

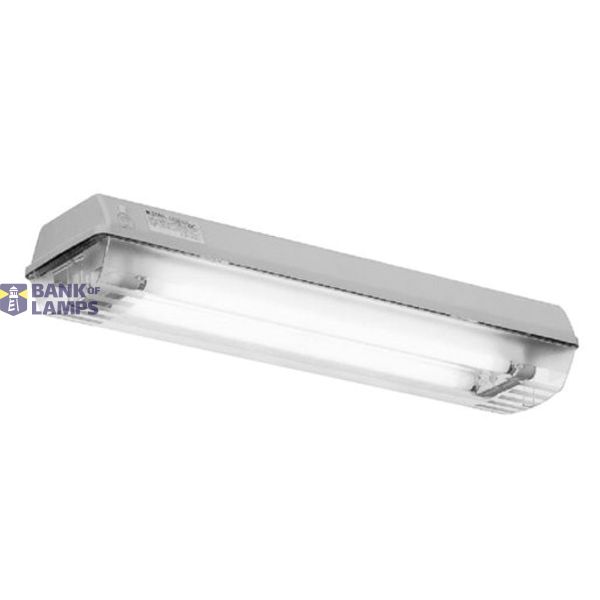

Product: Ex-lamp for linear light fittings, Discription: LLK 98036/36,Ex-Zone: Zone 1, Zone 21, Zone 2, Zone 22,Voltage: 220V - 254V AC,Power: 2x 36W,Entries: 2x M25 cable glands,Quick-wittedness: 1K,Through wiring: No, 1/6,
