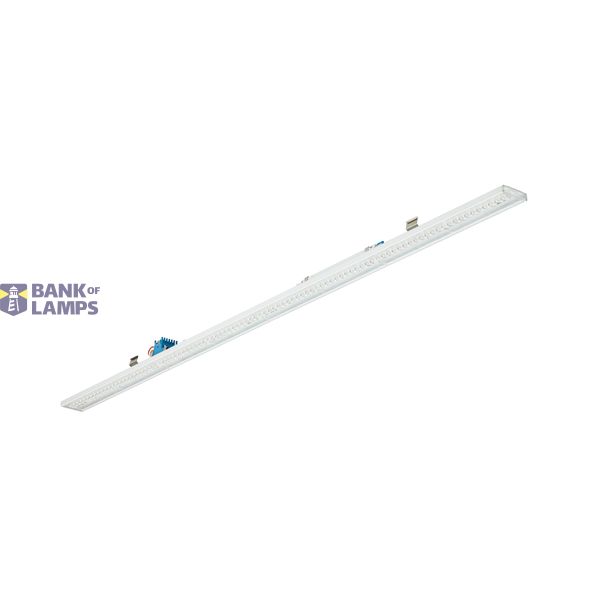

LL551X 80S/840 NE DIA WB WH
Order only
Not Available
Technical Information
| Item condition | New |
| Manufacture name | LL551X 80S/840 NE DIA WB WH |
| Brand | PHILIPS |
| Country of origin* | NL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC000986 |

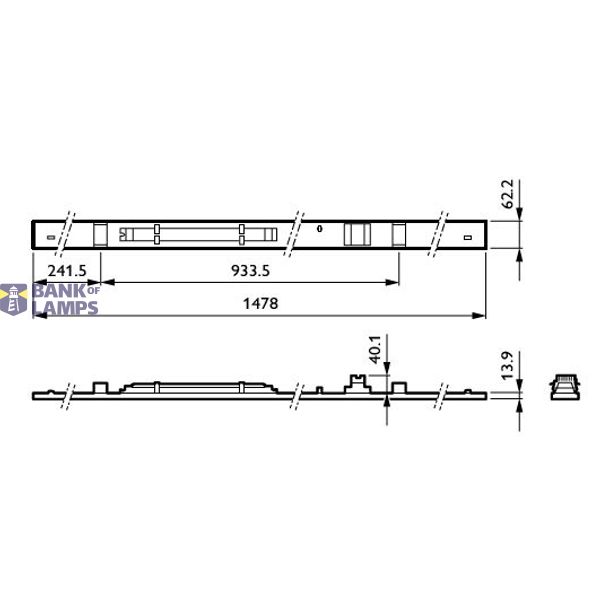

| Width | 62 mm |
| Colour rendering index CRI | 80-89 |
| Length | 1478 mm |
| Height/depth | 14 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |

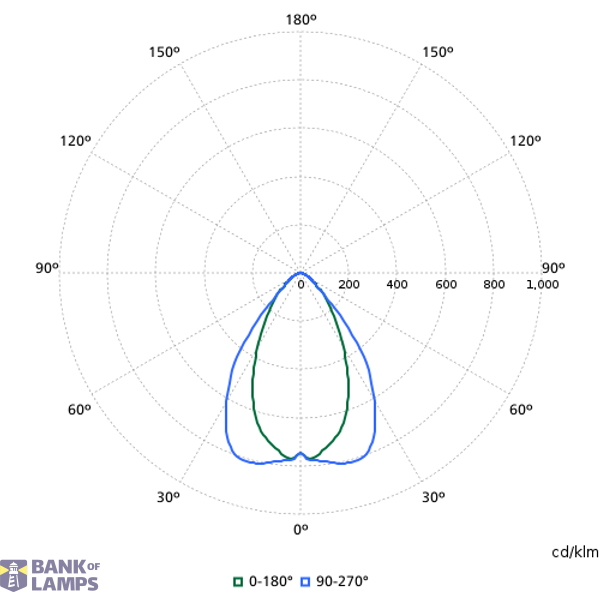

| Beam angle | Wide beam 41-80° |
| Colour temperature | 4000 K |
| Max. system power | 48 W |
| Rated luminous flux according to IEC 62722-2-1 | 8000 lm |
| Luminaire efficacy | 167 lm/W |
Packing details
| Packing level 1 | 8720169954960, 8720169954960 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 0.5 mm² |
| Connection type | Other |
| Colour housing | White |
| Voltage type | AC |
| Suitable for lamp power | 48 W |
| Type of control gear | LED operating device current-controlled |
| Number of poles | 5 |
| Housing material | Steel |
| Suitable for emergency lighting | No |
| Light outlet | Indirect |
| Light sharing | Symmetric |
| Emergency power supply integrated | No |
| With light source | Yes |
| Suitable for number of lamps | 2 |
| With control gear | Yes |
| Nominal current | 205 mA |
| Colour of light | White |
| Constant light output (CLO) | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | Yes |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |

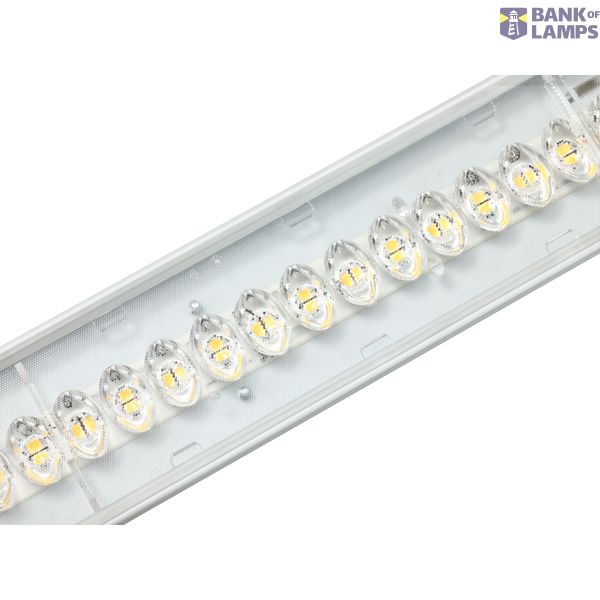

| Light distributor | Refractor lens |
| Dimming DSI | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 95 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 85 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 5 % |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | 10 % |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Power factor | 0.98 |
Downloads
Luminaria data
Others
Mounting instruction
Product data sheet
Declaration EPD (Environmental Product Declaration)
Description

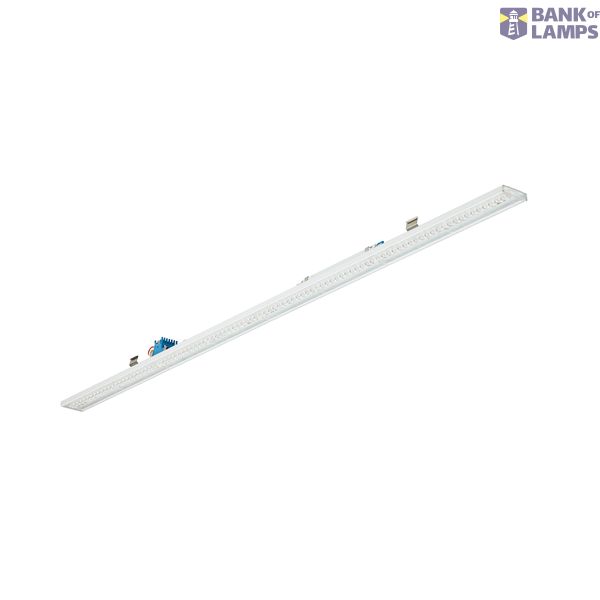

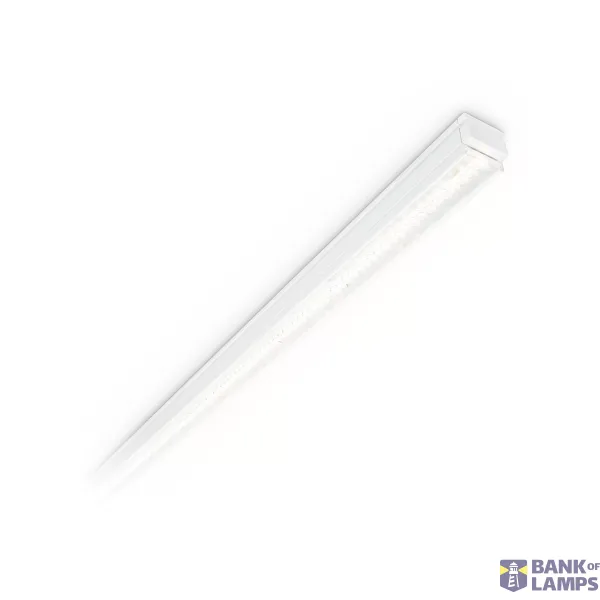

Maxos Unify trunking light unit, 1478 mm, Staal, Wit, Signaalwit (RAL9003), DALI-dimmen InterAct System-ready, 8000 lm, 48 W, 167 lm/W, 4000 K, (0.34. 0.35) SDCM
