LK 80X28 2ZKHF -Junction box for trunkings HF, configuration HB, colour super white/RAL9003, package - 10/100 pcs
Order only
Minimal order quantity: 10
Price (excl. VAT):
2,70 €
per pcs
Subtotal: 27,00 €
MOQ: 10
EAN: 8595057634138
MPN: LK 80X28 2ZKHF_HB
Package: 1
Box: 80
Pallet: 2880
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | LK 80X28 2ZKHF -Junction box for trunkings HF, configuration HB, colour super white/RAL9003, package - 10/100 pcs |
| Brand | KOPOS |
| Categories |
Surface Mounted Junction Boxes
|
| Country of origin* | CZ |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 3925 9080 00 |
| Halogen free | Yes |
| Equipped with | None |
| Rated insulation voltage Ui | 500 V |
| Sealable | No |
| Max. conductor cross section | 4 mm² |
| Weatherproof | No |
| Inlet from the rear | Yes |
Packing details
| Packing level 1 | 8595057634138 |
| Packing level 2 | 8595057634138 |
| Packing level 3 | 8595057634138 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Colour | White |

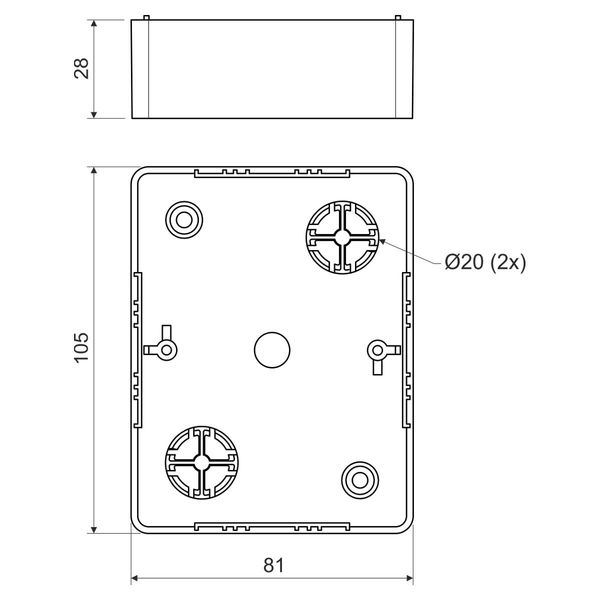

| Width | 80 mm |
| Depth | 28 mm |
| Shape | Rectangular |
| Diameter | 0 mm |
| Length | 104 mm |
| Operating temperature | -45-105 °C |
| Material | Plastic |
| Number of inlets | 6 |
| Explosion-tested version | No |
| With screening | No |
| Tackable | Yes |
| Type of housing feed-through | Preembossing |
| Castable | No |
| With casting compound | No |
| Transparent cover | No |
| Mounting in the soil | No |
| Mounting under water | No |
Downloads
Description
LK 80X28 2ZKHF - Box Trunking HF, configuration HB, colour SUPERwhite/RAL9003, package - 10/100 pcs - intended for double socket Classic or Swing , intended for assembly without the need of using insulating washer
