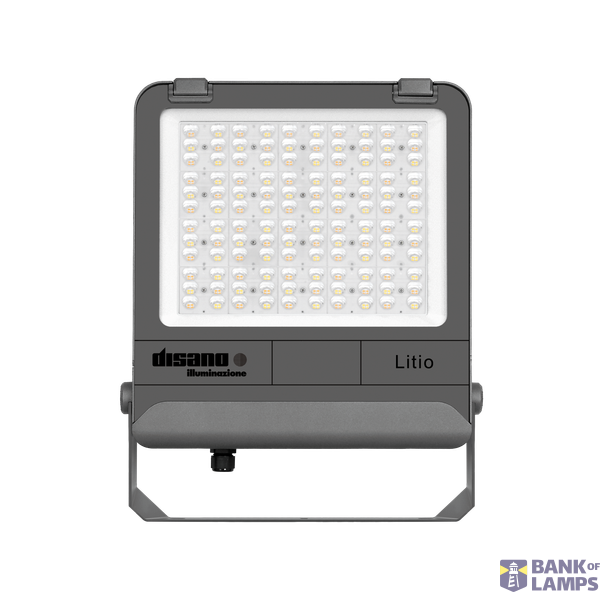

LITIO BIG 1149 LED 200W CLD RAL7021
Order only
Minimal order quantity: 50
Price (excl. VAT):
129,47 €
Subtotal: 6 473,50 €
MOQ: 50
EAN: 8012952196269
MPN: 41204500
Package: 1
Estimate delivery time to our warehouse: 3-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | LITIO BIG 1149 LED 200W CLD RAL7021 |
| Brand | Disano Illuminazione |
| Categories |
Luminaires
|
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC001744 |
| Width | 373 mm |
| Length | 457 mm |
| Height/depth | 114 mm |
| Impact strength | IK10 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 4000 K |
| Max. system power | 200 W |
| Luminaire efficacy | 163 lm/W |
Packing details
| Packing level 1 | 8012952196269 |
Other Technical data
| Protection class | I |
| Colour housing | Anthracite |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | - W |
| Suitable for wall mounting | No |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Light outlet | Direct |
| Light sharing | Asymmetric |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Connectable conductor cross section | - mm² |
| Surface brushed | No |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 32604 lm |
| Colour consistency (McAdam ellipse) | SDCM4 |
| Photobiological safety according to EN 62471 | RG0 |
| Rated ambient temperature according to IEC62722-2-1 | -40-40 °C |
| LED nominal current at constant current | - mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | Yes |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming depending on control gear | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Dimming DALI-2 | No |
| Luminous flux adjustable | Positions |
| Exchangeable control gear | No |
| Built-in diameter | - mm |
| Suitable for ceiling mounting | Yes |
| Power factor | 0.9 |
Description
Floodlight Power Switch
