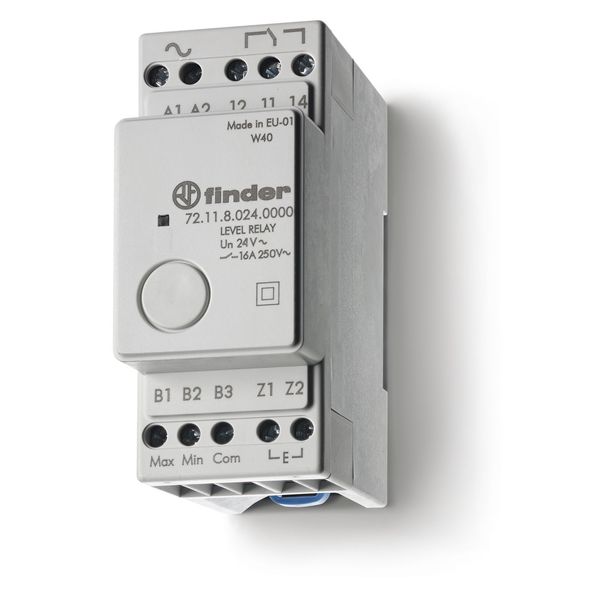

Liquid level monitoring Rel. fixed 150 kΩ 1CO 16A/24VDC (72.11.9.024.0000)
Order only
Minimal order quantity: 5
Price (excl. VAT):
59,38 €
per pcs
Subtotal: 296,90 €
MOQ: 5
EAN: 8012823302195
MPN: 721190240000
Package: 1
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Liquid level monitoring Rel. fixed 150 kΩ 1CO 16A/24VDC (72.11.9.024.0000) |
| Brand | FINDER |
| Categories |
Monitoring Relays
|
| Harmonized System Code | 9026 1029 00 |
| Number of inputs for electrodes | 3 |
| Response value sensitivity adjustable | No |
| Type of electric connection | Screw connection |
| Physical measurement principle | Conductive |
| Number of contacts as normally closed contact | 0 |
Packing details
| Packing level 1 | 8012823302201 |
| Packing level 2 | 8012823302195 |
Other Technical data
| Width | 35 mm |
| Height | 84 mm |
| Depth | 54.6 mm |
| With detachable clamps | No |
| Rated control supply voltage at DC | 24 V |
| Max. permitted operate delay time | 7 s |
| Voltage type for actuating | DC |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
Downloads
Description
Monitoring relays Nr.contacts: 1 Contacts configuration: CO Contact Material: AgCdO (A): 16 Coil version: DC Volt DC: 24 V. With detachable clamps: no Number of inputs for electrodes: 3 Response value sensitivity adjustable: no Type of electric connection: Screw connection Max. permitted operate delay time: 7 s. Physical measurement principle: Conductive Protection Category: IP 20
