LINEDO, white, on/off Continuous line luminaire, L 336 B 62 H 343, SBS
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
845,52 €
EAN: 4051859680420
MPN: 9503RZ.762.434.030
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | LINEDO, white, on/off Continuous line luminaire, L 336 B 62 H 343, SBS |
| Brand | RZB |
| Categories |
Accessories for track lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 6180 00 |
| Width | 62 mm |
| Colour rendering index CRI | 70-79 |
| Length | 336 mm |
| Height/depth | 343 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP54 |
| Beam angle | Open beam/diffuse |
| Colour temperature | 6300 K |
| Max. system power | 4.2 W |
Packing details
| Packing level 1 | 4051859680420, 4051859680420 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | White |
| Voltage type | AC |
| Suitable for lamp power | 3 W |
| Type of control gear | LED operating device current-controlled |
| Number of poles | 14 |
| Housing material | Aluminium |
| Suitable for emergency lighting | No |
| Emergency power supply integrated | Yes |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Colour of light | White |
| Constant light output (CLO) | No |
| Type of wiring | Through wiring included |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | None |
| Dimming DSI | No |
| Luminous flux adjustable | No |
| Exchangeable control gear | Yes |
Downloads
Description

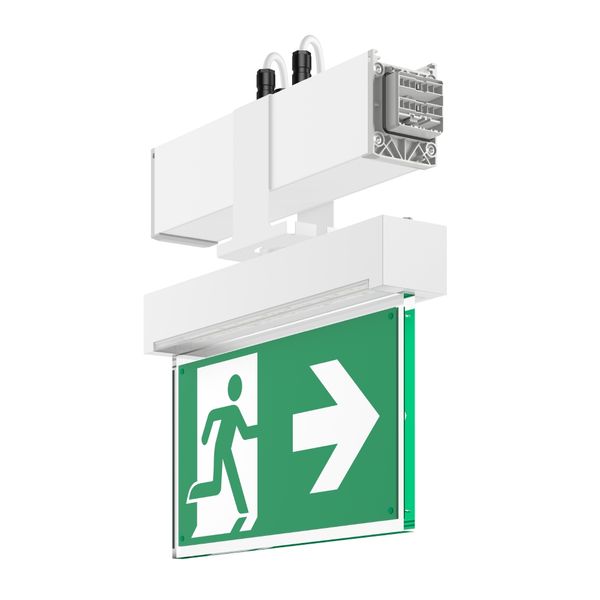

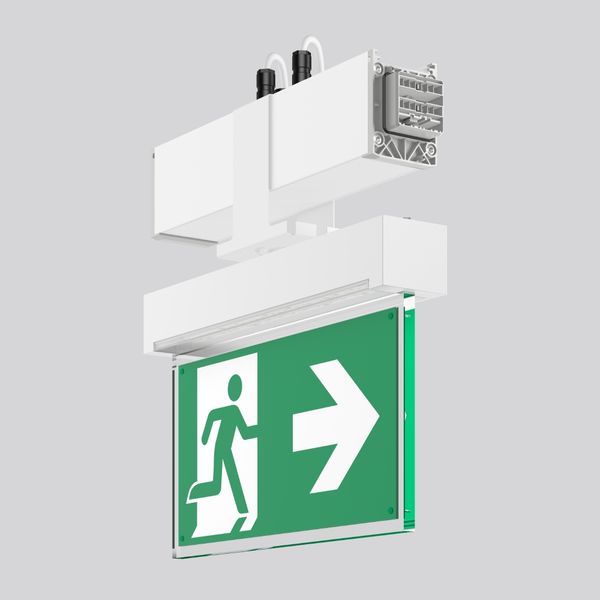

Module including emergency luminaire for escape route identification. System profile made of aluminium extrusion profile, powder-coated. Cover made of aluminium, surface like system profile. Emergency luminaire attached to the system profile by means of a bracket. Luminaire made of robust plastic (polycarbonate), white. Mounting bracket made of sheet steel, powder-coated. Display panel: plastic, with motifs on one side/on both sides. Set of legends included. Simple, tool-free installation of system profiles using separate accessories for cable or chain suspension. Tool-free connection and mechanical connectors to secure. 2.5 m connection cable for flexible positioning of the emergency luminaire on the system profile. 14-pin LINEDO plug (5 x 2.5 mm² / 9 x 1.5 mm²) for through-wiring and connection option to the emergency lighting circuit (1/2). Self-contained system with automatic self-test and feedback to the RZB monitoring system MULTIDIGIT. Please order supply module, connection and mounting accessories separately.
