LINEDO, silver, on/off Continuous line luminaire, L 336 B 62 H 343, SB
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
845,52 €
EAN: 4051859680444
MPN: 9503RZ.760.437.030
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | LINEDO, silver, on/off Continuous line luminaire, L 336 B 62 H 343, SB |
| Brand | RZB |
| Categories |
Accessories for track lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 6180 00 |
| Width | 62 mm |
| Colour rendering index CRI | 70-79 |
| Length | 336 mm |
| Height/depth | 343 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP54 |
| Beam angle | Open beam/diffuse |
| Colour temperature | 6300 K |
| Max. system power | 4.2 W |
Packing details
| Packing level 1 | 4051859680444, 4051859680444 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | Silver |
| Voltage type | AC |
| Suitable for lamp power | 3 W |
| Type of control gear | LED operating device current-controlled |
| Number of poles | 14 |
| Housing material | Aluminium |
| Suitable for emergency lighting | No |
| Emergency power supply integrated | Yes |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Colour of light | White |
| Constant light output (CLO) | No |
| Type of wiring | Through wiring included |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | None |
| Dimming DSI | No |
| Luminous flux adjustable | No |
| Exchangeable control gear | Yes |
Downloads
Description

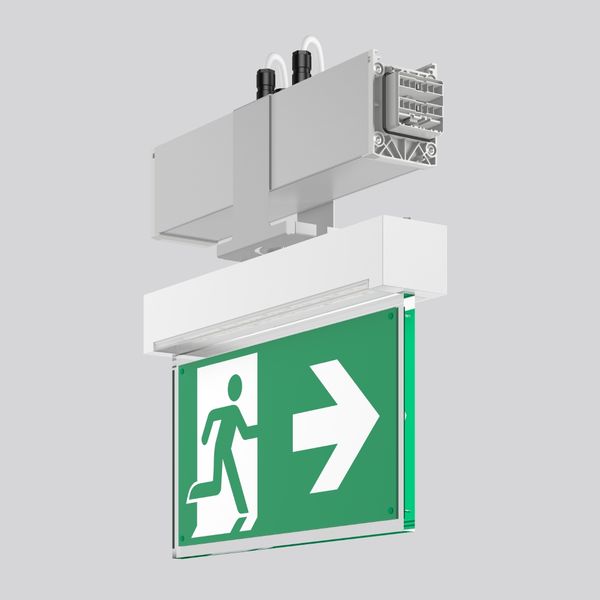

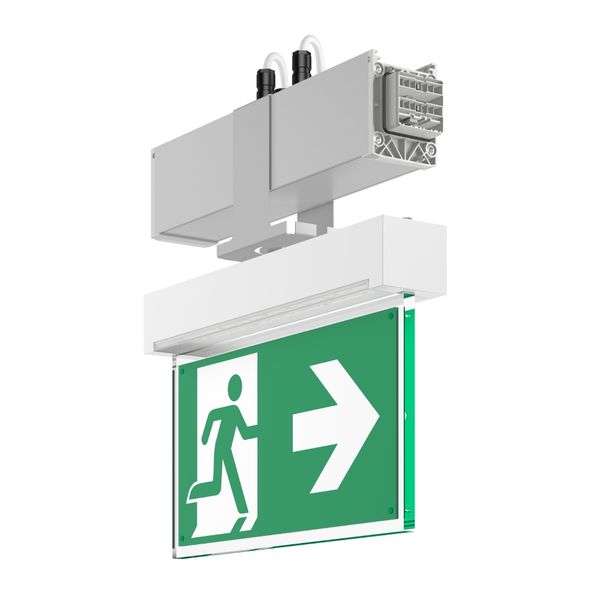

Module including emergency luminaire for escape route identification. System profile made of aluminium extrusion profile, anodised. Cover made of aluminium, surface like system profile. Emergency luminaire attached to the system profile by means of a bracket. Luminaire made of robust plastic (polycarbonate), white. Mounting bracket made of sheet steel, powder-coated, silver. Display panel: plastic, with motifs on one side/on both sides. Set of legends included. Simple, tool-free installation of system profiles using separate accessories for cable or chain suspension. Tool-free connection and mechanical connectors to secure. 2.5 m connection cable for flexible positioning of the emergency luminaire on the system profile. 14-pin LINEDO plug (5 x 2.5 mm² / 9 x 1.5 mm²) for through-wiring and connection option to the emergency lighting circuit (1/2). Self-contained system with automatic self-test and feedback via DALI bus, only to RZB DALI monitoring system. Please order supply module, connection and mounting accessories separately.
