LINEDO, 6,7 W, 390 lm, 765, silver, on/off Continuous line luminaire,
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
636,26 €
EAN: 4051859680598
MPN: 9503RW.760.434.000
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | LINEDO, 6,7 W, 390 lm, 765, silver, on/off Continuous line luminaire, |
| Brand | RZB |
| Categories |
Accessories for track lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Width | 198 mm |
| Colour rendering index CRI | 70-79 |
| Length | 330 mm |
| Height/depth | 170 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP54 |
| Beam angle | Open beam/diffuse |
| Colour temperature | 6500 K |
| Max. system power | 6.7 W |
| Rated luminous flux according to IEC 62722-2-1 | 390 lm |
| Luminaire efficacy | 59 lm/W |
Packing details
| Packing level 1 | 4051859680598, 4051859680598 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | Silver |
| Voltage type | AC |
| Suitable for lamp power | 6.7 W |
| Type of control gear | LED operating device current-controlled |
| Number of poles | 14 |
| Housing material | Aluminium |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Emergency power supply integrated | Yes |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Nominal current | 28-30 mA |
| Colour of light | White |
| Constant light output (CLO) | No |
| Type of wiring | Through wiring included |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming DSI | No |
| Luminous flux adjustable | No |
| Exchangeable control gear | Yes |
Downloads
Description

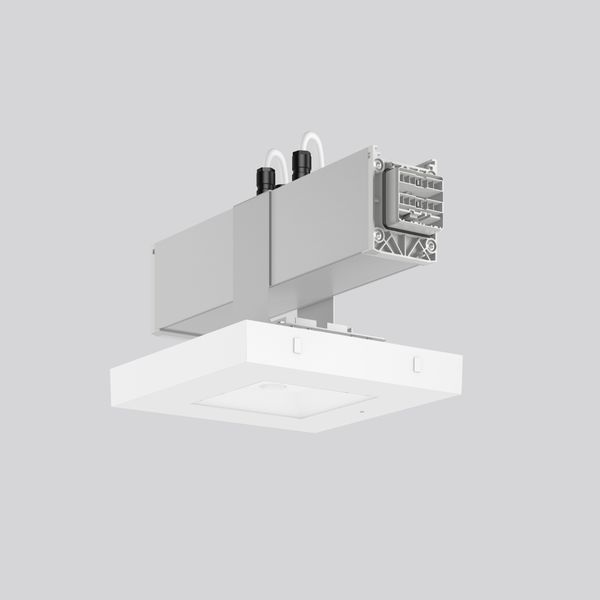

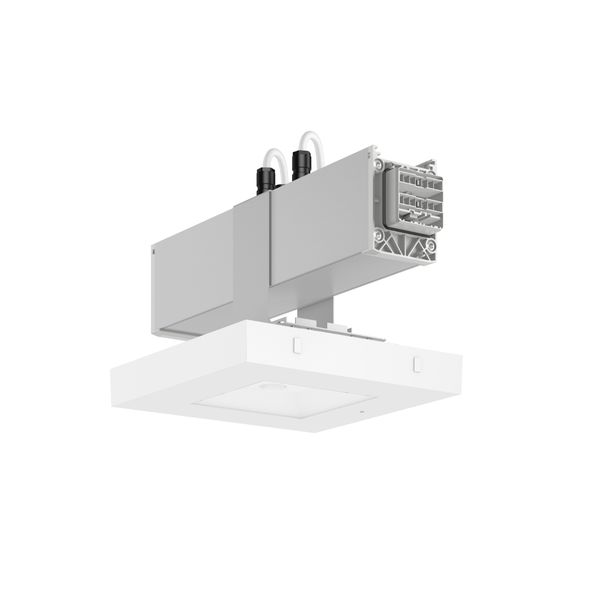

Module including emergency luminaire for escape route illumination. System profile made of aluminium extrusion profile, anodised. Cover made of aluminium, surface like system profile. Emergency luminaire attached to the system profile by means of a bracket. Luminaire made of pressure die-cast aluminium, white powder-coated. Cover: polycarbonate. Mounting bracket made of sheet steel, powder-coated, silver. With plastic lenses for escape route illumination. Simple, tool-free installation of system profiles using separate accessories for cable or chain suspension. Tool-free connection and mechanical connectors to secure. 2.5 m connection cable for flexible positioning of the emergency luminaire on the system profile. 14-pin LINEDO plug (5 x 2.5 mm² / 9 x 1.5 mm²) for through-wiring and connection option to the emergency lighting circuit (1/2). Self-contained system with automatic self-test and feedback to the RZB monitoring system MULTIDIGIT. Please order supply module, connection and mounting accessories separately.
