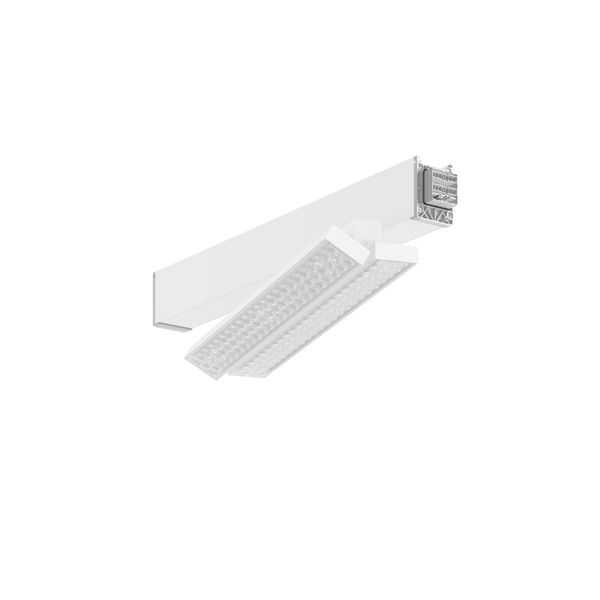

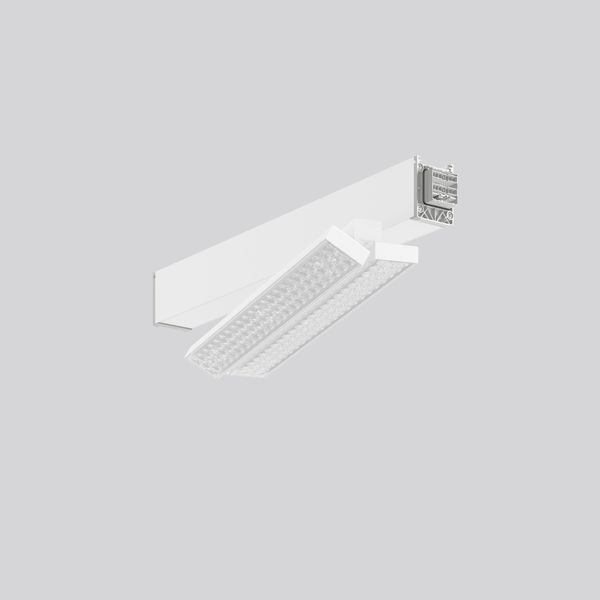

LINEDO, 41...73 W, 6300...10400 lm, 840, white, DALI Continuous line l
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
424,88 €
EAN: 4051859949022
MPN: 950690.842.776.400
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | LINEDO, 41...73 W, 6300...10400 lm, 840, white, DALI Continuous line l |
| Brand | RZB |
| Categories |
Accessories for track lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Width | 119 mm |
| Colour rendering index CRI | 80-89 |
| Length | 598 mm |
| Height/depth | 130.8 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 73 W |
| Rated luminous flux according to IEC 62722-2-1 | 6300 lm |
| Luminaire efficacy | 154 lm/W |
Packing details
| Packing level 1 | 4051859949022, 4051859949022 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | None |
| Connection type | Other |
| Colour housing | White |
| Voltage type | AC |
| Suitable for lamp power | 41-73 W |
| Type of control gear | LED operating device current-controlled |
| Number of poles | 7 |
| Housing material | Aluminium |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Emergency power supply integrated | No |
| With light source | Yes |
| Suitable for number of lamps | 2 |
| With control gear | Yes |
| Nominal current | 171-186 mA |
| Colour of light | White |
| Constant light output (CLO) | No |
| Type of wiring | Through wiring included |
| Rated life time L80/B10 at 25 °C | 50000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | None |
| Dimming DSI | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 80 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 10 % |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Power factor | 0.9 |
Downloads
Description
Quick assembly complete module including floodlight series TX-Move. two lamps. System profile made of aluminium extrusion profile, powder-coated. Spotlight housing: sheet steel, powder coated. Rotation range: 356°. Swivel range: 90°. Consistent alignment possible with visible tilt scale. High-efficiency LED units with optimum light control thanks to clear plastic (PC) lens optics. Special microstructures reduce the yellow corona (caused by chromatic aberration) to an absolute minimum. MultiLumen: 3 steps adjustable luminous flux. Factory setting is the highest luminous flux. Simple, tool-free installation of system profiles using separate accessories for cable, chain or ceiling suspension. Tool-free connection and mechanical connectors to secure. 7-poles LINEDO connector (5 x 2.5 mm² / 2 x 1.5 mm²). Phase can be set via patended bridge without opening the luminaire. Please order supply module, connection and mounting accessories separately.
