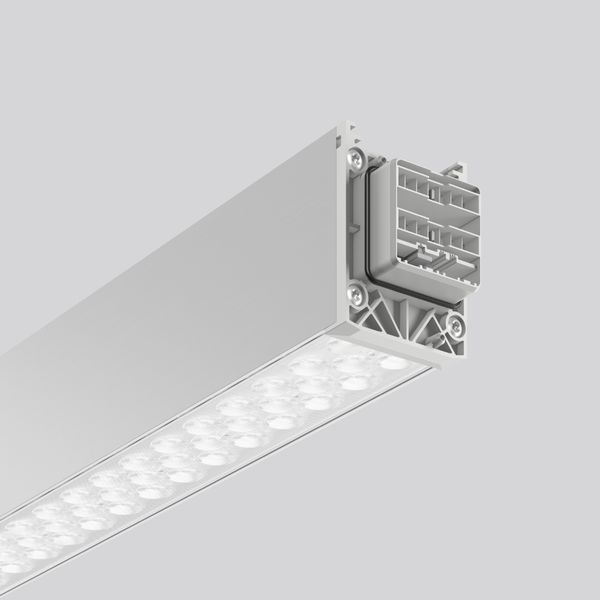

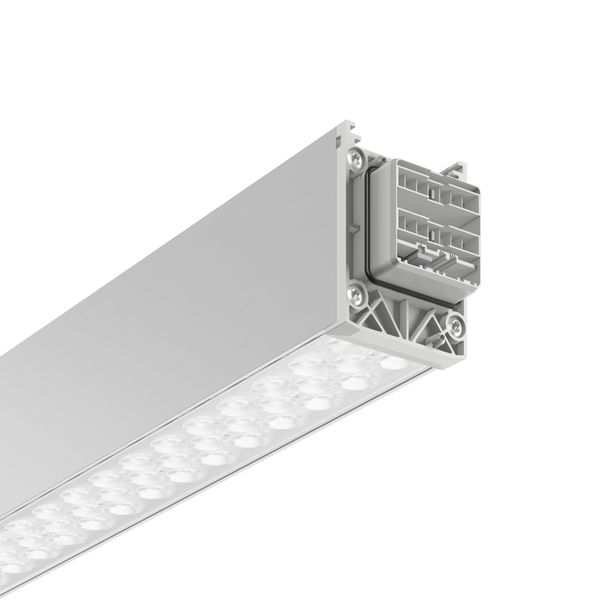

LINEDO, 30 W, 4100 lm, 840, aluminium, DALI Continuous line luminaire,
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
376,55 €
EAN: 4051859770640
MPN: 950690.840.QOD.003
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | LINEDO, 30 W, 4100 lm, 840, aluminium, DALI Continuous line luminaire, |
| Brand | RZB |
| Categories |
Accessories for track lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Width | 58 mm |
| Colour rendering index CRI | 80-89 |
| Length | 598 mm |
| Height/depth | 76 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP54 |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 30 W |
| Rated luminous flux according to IEC 62722-2-1 | 4100 lm |
| Luminaire efficacy | 137 lm/W |
Packing details
| Packing level 1 | 4051859770640, 4051859770640 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | None |
| Connection type | Other |
| Colour housing | Aluminium |
| Voltage type | AC/DC |
| Suitable for lamp power | 30 W |
| Type of control gear | LED operating device current-controlled |
| Number of poles | 14 |
| Housing material | Aluminium |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Emergency power supply integrated | No |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Nominal current | 125-136 mA |
| Colour of light | White |
| Constant light output (CLO) | Yes |
| Type of wiring | Through wiring included |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | None |
| Dimming DSI | No |
| Exchangeable control gear | Yes |
| Power factor | 0.99 |
Downloads
Description
Rapid-installation complete module for universal use as a continuous line luminaire. System profile made of aluminium extrusion profile, anodised. High-efficiency LED units with optimum light control thanks to clear plastic (PC) lens optics. Wide beam light distribution. Simple, tool-free installation of system profiles using separate accessories for cable, chain or ceiling suspension. Tool-free connection and mechanical connectors to secure. With AC Control DALI monitoring module for Luxifair central battery units. Connection to emergency lighting circuit 2
