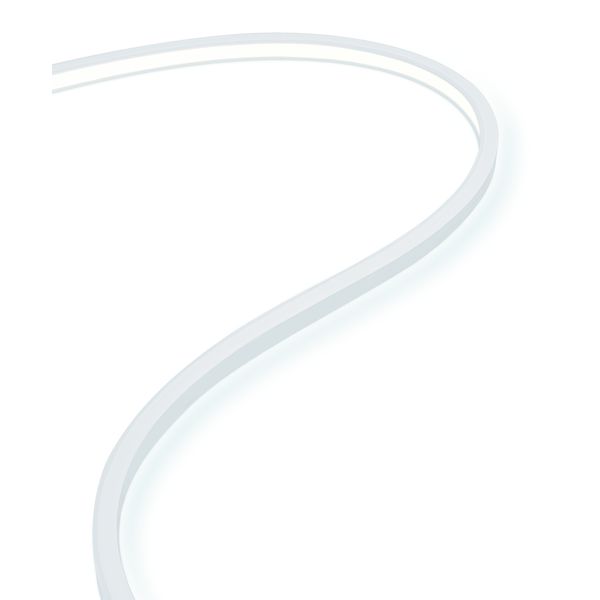

LINEARlight FLEX® DIFFUSE Side White -G1-827-06
Order only
Price (excl. VAT):
872,71 €
Split box: 10,00 €
EAN: 4052899582026
MPN: 4052899582026
Package: 1
Box: 6
Pallet: 96
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | LINEARlight FLEX® DIFFUSE Side White -G1-827-06 |
| Brand | OSRAM |
| Categories |
Light ribbon-/hose/-strip
|
| Country of origin* | IT |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 4231 00 |
| Width | 14.1 mm |
| Beam angle | 120 ° |
| Colour rendering index CRI | 80-89 |
| Length | 6000 mm |
| Height/depth | 10.8 mm |
| Lamp type | LED not exchangeable |
| Degree of protection (IP) | IP66 |
| Lamp power per meter | 11.5 W |
| Lamp voltage | 24 V |
| Colour temperature | 2700 K |
| Luminous flux per meter | 650 lm |
Packing details
| Packing level 1 | 4052899582026 |
| Packing level 2 | 4052899582033 |
| Packing level 3 | 4052899582026 |
Other Technical data
| Mounting method | Surface mounting |
| Model | Strip |
| Conductor cross section | 1 mm² |
| Connection type | Push-in clamp |
| Voltage type | DC |
| Self-adhesive | Yes |
| Suitable for dimmer | Yes |
| Number of poles | 2 |
| With protective cover | Yes |
| Lowest bending radius | 100 mm |
| Length of particular segments | 50 mm |
| With connection set | Yes |
| With end piece | No |
| Number of nodes per meter | 140 |
| Max. system power | 69.12 W |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Rated life time L70/B50 at 25 °C | 60000 h |
| Degree of protection (NEMA) | Other |
| Lamp power per foot | 3.5 W |
| Number of nodes per foot | 42 |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
Downloads
Description
LED modules for professional and industrial applications. Product features: Diffused light lines without visible spots Flexible and cuttable module to support design freedom Long operational length per single power feed possible (up to 6m) Ideal for luminaire designs Extra strong self-adhesive backside for easy mounting 24 V technology for easy dimensioning Recommended in system use with OPTOTRONIC Increased reliability due to single piece reel-to-reel technology Dimmable with PWM technology . Product benefits: IP67 protection with high performance silicone Reliable connection over long periods of time: IP67 connector with built-in protection against liquids penetrating through the wires into the LED strip Outdoor use possible: UV and salt mist resistant (UV acc. to ISO 4892-2 - Method A, salt mist acc. to IEC 60068-2-52 severity 1) . Areas of application: Individual and customized luminaires Organic shaped luminaires Architectural Integration – e.g. coves, walls Object integration – e.g. handrails Signage and illuminated advertising .
