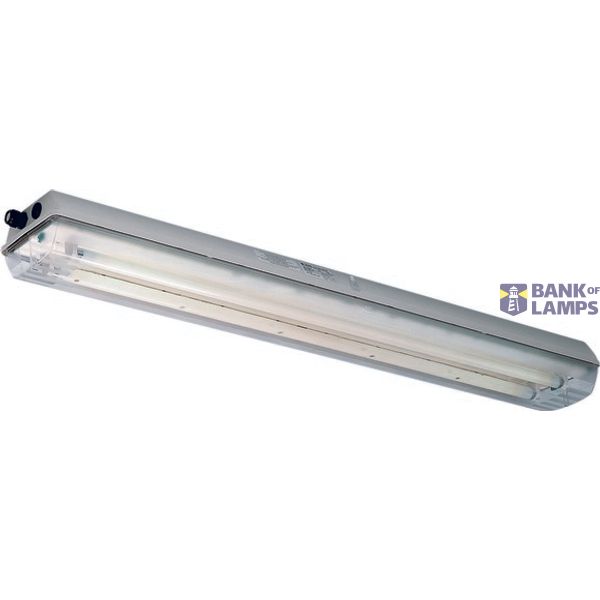

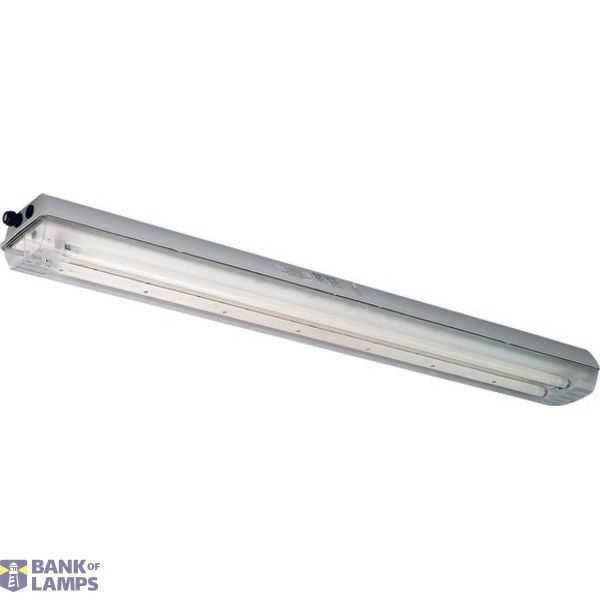

Linear light fitting for Industrial, Variant: LLK 98 LED 1200 2/6-2K
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Linear light fitting for Industrial, Variant: LLK 98 LED 1200 2/6-2K |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 188 mm |
| Length | 1.36 mm |
| Height/depth | 130 mm |
| Lamp type | Fluorescent lamp |
| Impact strength | IK10 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Beam angle | Wide beam 41-80° |
| Rated luminous flux according to IEC 62722-2-1 | 4.6 lm |
Packing details
| Packing level 1 | 4250959946744 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Lamp holder | G13 |
| Conductor cross section | 6 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC |
| Suitable for lamp power | 26 W |
| Type of control gear | Electronic ballast |
| Adjustable | No |
| Number of poles | 5 |
| Housing material | Plastic |
| Material cover | Plastic, transparent |
| For Ex-zone gas | None |
| With light source | No |
| Suitable for number of lamps | 2 |
| With control gear | Yes |
| For Ex-Zone dust | None |
| Constant light output (CLO) | No |
| Type of wiring | Through wiring included |
| Degree of protection (NEMA) | Other |
| Light distributor | Reflector |
| Exchangeable control gear | No |
Description
Industrial-Linear light fitting; Variante: LLK 98 LED 1200 2/6-2KVoltage: 220 V AC; Light source: LED Tube; Lumen: 4600 lm; Permissible ambient temperature: -20°C up to +40°C; Degree of Protection: IP66; Weight: 7,0 kg; Dimensions: 1360 mm x 188 mm x 130 mm; Protective cover material: Polycarbonate; Enclosure material: Glass-fibre reinforced polyester; Enclosure color: Dark grey; Cable entry: 2x M25 Blind plug (Plastic)
