LINEAR LED FLIP SENSOR 5W 3000K
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LINEAR LED FLIP SENSOR 5W 3000K |
| Brand | LEDVANCE |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 4231 00 |
| ETIM | EC000109 |

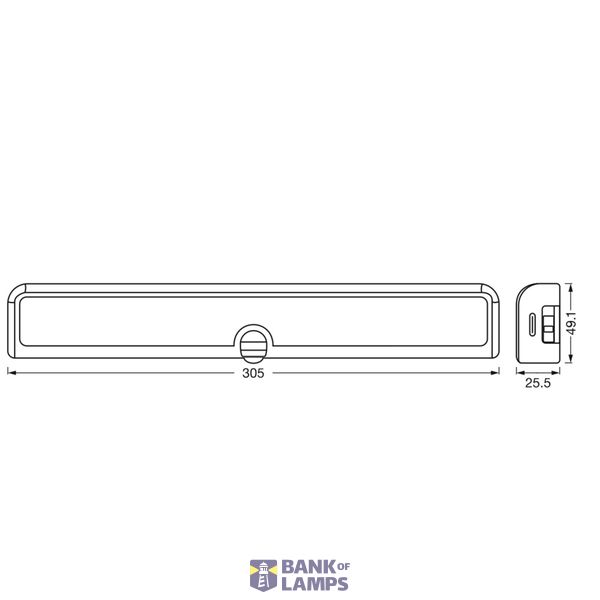

| Width | 49.1 mm |
| Colour rendering index CRI | 80-89 |
| Length | 305 mm |
| Height/depth | 25.5 mm |
| Degree of protection (IP) | IP20 |
| Colour temperature | 3000 K |
| Max. system power | 4.5 W |
| Rated luminous flux according to IEC 62722-2-1 | 250 lm |
Packing details
| Packing level 1 | 4099854096570 |
| Packing level 2 | 4099854096587 |
Other Technical data
| Protection class | III |
| Colour housing | White |
| Voltage type | DC |
| With movement sensor | Yes |
| Type of control gear | Electronic ballast |
| With switch | Yes |
| Number of poles | 2 |
| Material | Plastic |
| Electrical connection with connector system | Yes |
| Suitable for emergency lighting | No |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| With control gear | Yes |
| Nominal current | 850 |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | Yes |
| Rated life time L70/B50 at 25 °C | 30000 h |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | Yes |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Positions |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Power factor | 1 |
Downloads
Description

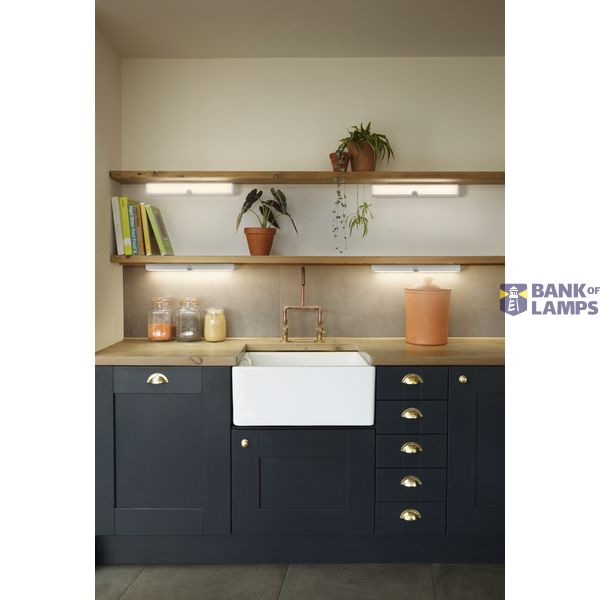

Undercabinet luminaire with 90° rotatable lamp body. Product features: 90° Rotating head for versatile use. PIR motion and daylight sensor. Product benefits: Suitable for mounting in corners, wall or undercabinet. Easy mounting. Areas of application: Shelf and undercabinet lighting. Equipment / Accessories: USB cable, lenght: 1 m. 3 AA Battery compartment (Batteries not included).
