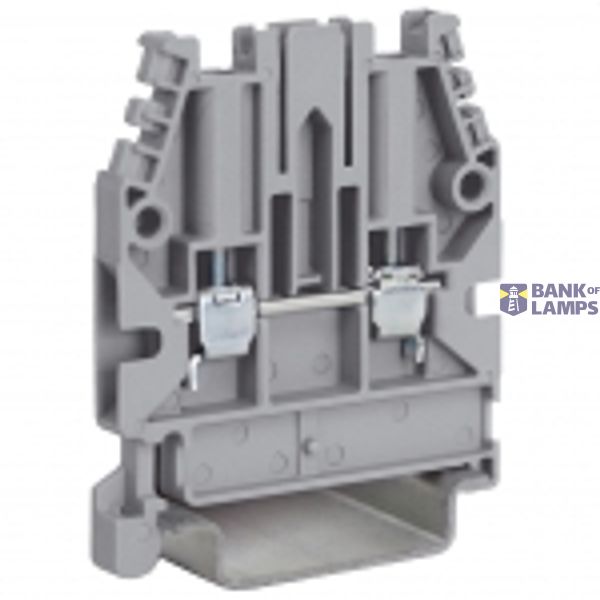

Line-up terminal, ESC-CBC.2

Name: Line-up terminal, ESC-CBC.2
Brand: ETI
Availability: PreOrder

In vendor's stock Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Line-up terminal, ESC-CBC.2
Brand	ETI
ETIM	EC000897
Mounting method	DIN rail (top hat rail) 35 mm
Rated voltage	1000 V
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Number of levels	1
Number of clamp positions per level	2
Connectable conductor cross section solid-core	0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.2 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2 mm²
Connectable conductor cross section multi-wired	0.2 mm²
Rated current In	37 A

Packing level 1

3838895787907, 3838895787907

Colour	Grey
Operating temperature	0-40 °C
Inflammability class of insulation material according to with UL94	V0
Closing plate required	Yes
Internally connected stages	No
Material insulation body	Thermoplastic
Explosion-tested version 'Ex e'	Yes

Line-up terminal, ESC-CBC.2, Catalogue Group ES Screw Type Terminal Blocks, Color Grey, Rated cross section 2,5
