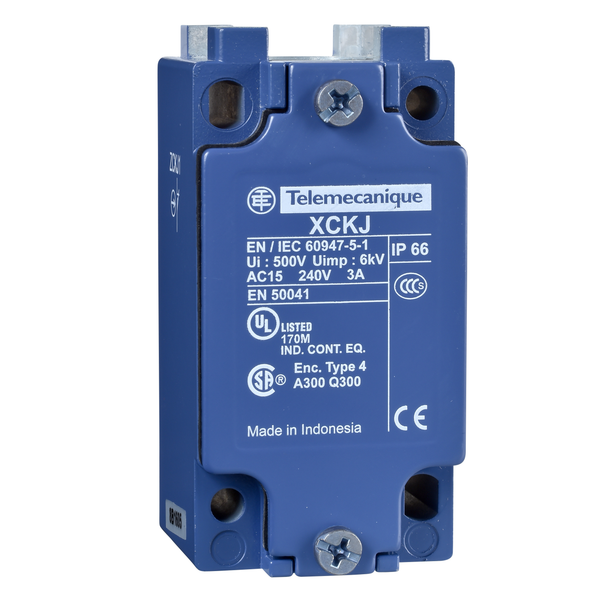

Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 2NC+1 NO, snap action, M20
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
22,84 €
EAN: 3389110225037
MPN: ZCKJD39H29
Package: 1
Box: 24
Pallet: 384
Estimate delivery time at our warehouse (approx.):
8-10 weeks
Technical Information
| Item condition | New |
| Manufacture name | Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 2NC+1 NO, snap action, M20 |
| Brand | Telemecanique |
| Categories |
Limit Switches
|
| Country of origin | ID |
| Switching function | Quick-break switch |
| Rated operation current Ie at AC-15, 230 V | 1.5 A |
| Rated operation current Ie at DC-13, 230 V | 0.1 A |
| Suitable for safety functions | No |
| With status indication | No |
| Type of control element | None |
| Rated operation current Ie at AC-15, 24 V | 0 A |
| Rated operation current Ie at DC-13, 125 V | 0 A |
| Rated operation current Ie at DC-13, 24 V | 0 A |
Packing details
| Packing level 1 | 3389110225037 |
| Packing level 2 | 3389110225031 |
| Packing level 3 | 3389110225036 |
Other Technical data
| Housing material | Metal |
| Coating housing | Other |
| Type of interface for safety communication | None |
| Type of electric connection | Cable entry metrical |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP65 |
| Forced opening | Yes |
| Number of safety auxiliary contacts | 0 |
| Type of interface | None |
| Output electronic | No |
| Rated operation current Ie at AC-15, 125 V | 0 A |
| Width sensor | 40 mm |
| Diameter sensor | 0 mm |
| Height of sensor | 77 mm |
| Length of sensor | 44 mm |
| Switching function latching | No |
| Ambient temperature during operating | -25-70 °C |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Alignment of the control element | Other |
Downloads
Description
This product is part of the XC Standard range, an offer of limit switches. This body is main part of limit switch, contains the electrical contact mechanism. It has 2 normally closed + 1 normally opened, snap action contacts with positive opening operation. It is a limit switch body with a rated operational current of 1.5A at 240V AC, 0.1A at 250V AC and a conventional enclosed thermal current of 6A. It is furnished with screw clamp terminals for electrical connection and 1 cable entry tapped for M20 x 1.5 cable gland. It offers long electrical durability of about 5 million operating cycles. It is an IP66 and IK05 rated product. This limit switch body is in fixed type which is made of metal. Its dimensions are 52mm (width) x 30mm (depth) x 72mm (height) and weighs 0.21kg. It is intended for all industrial machine application such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCKJ limit switches. It is associated with ZCKE21, ZCKE67, ZCKE64, ZCKE62, ZCKE629, ZCKE63, ZCKE619, ZCKE65, ZCKE23, ZCKE66, ZCKE05, ZCKE61, ZCKE06 and ZCKE08 heads. European standard products (EN 50047) have positive opening contacts, even in snap action versions which allow use in safety applications.
