LIMAT-4-DN 4p AC C16/0.03

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	LIMAT-4-DN 4p AC C16/0.03
Brand	ETI
ETIM	EC000905
Rated current	16 A
Rated voltage	400 V
Release characteristic	C
Rated fault current	0.03 A
Leakage current type	AC
Degree of protection (IP)	IP20
Number of protected poles	4
Number of poles (total)	4

Packing details

Packing level 1	3838895570745, 3838895570745
Packing level 2	3838895570752, 3838895570752
Packing level 3	3838895570745, 3838895570745

Other Technical data

Built-in depth	68 mm
Current limiting class	3
Width in number of modular spacings	8
Frequency	50 Hz
Concurrently switching neutral conductor	Yes
Anti-nuisance tripping version	No

Description

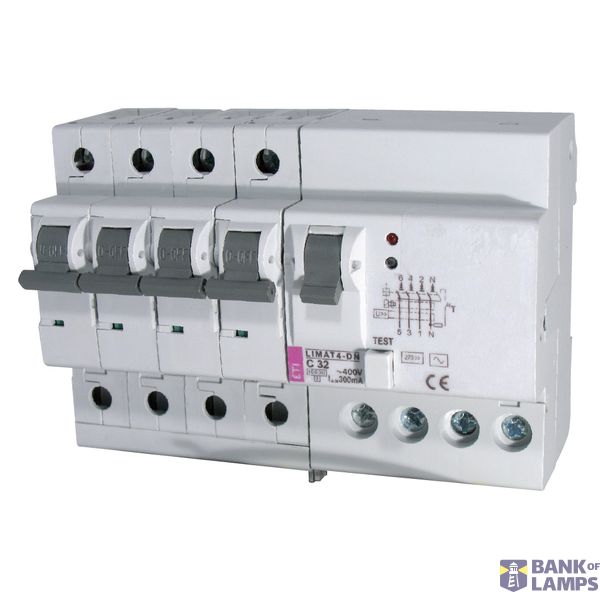

RCBO, LIMAT-4-DN 4p AC C16/0.03, No. Of poles 4, Catalogue Group LIMAT4 DN Residual current circuit breakers with overcurrent protection, 8 moduls, Current type AC, Function RCBO, Overvoltage protection with overvoltage protection, Rated current (A) 16, Rated residual current (A) 0.03, Short circuit capacity (kA) 10, Tripping characteristic C
