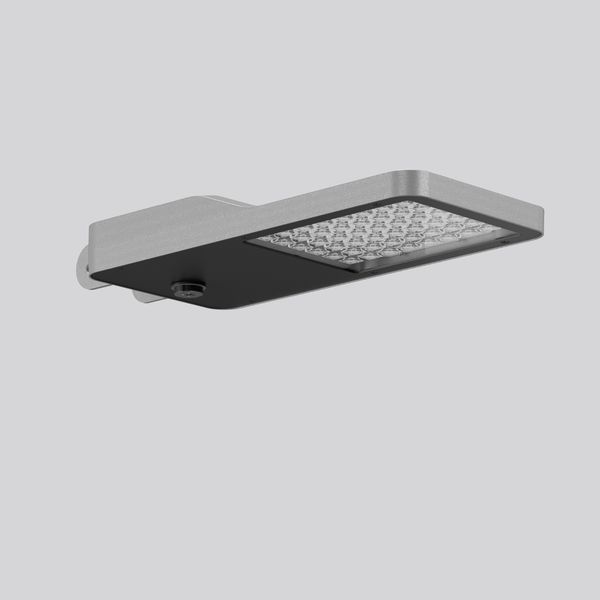

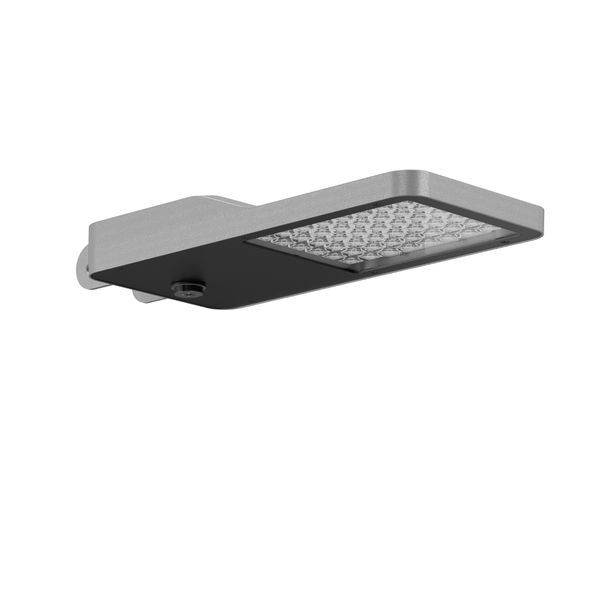

LIGHTSTREAM midi, 93 W, 13200 lm, 740, silver, DALI Zhaga Spotlights,
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
679,77 €
EAN: 4051859959366
MPN: 722288.114.1.Z1
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | LIGHTSTREAM midi, 93 W, 13200 lm, 740, silver, DALI Zhaga Spotlights, |
| Brand | RZB |
| Categories |
Luminaires
|
| Country of origin | DE |
| Harmonized System Code | 9405 4239 00 |
| Width | 220 mm |
| Length | 516 mm |
| Height/depth | 65 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 4000 K |
| Max. system power | 93 W |
| Rated luminous flux according to IEC 62722-2-1 | 13200 lm |
| Luminaire efficacy | 142 lm/W |
Packing details
| Packing level 1 | 4051859959366, 4051859959366 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Other |
| Colour housing | Silver |
| Surface protection | Powder coating |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 93 W |
| Type of control gear | LED operating device current-controlled |
| Suitable for wall mounting | No |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Light outlet | Direct |
| Light sharing | Asymmetric |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 3 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Surface brushed | No |
| Nominal current | 388-423 |
| Colour of light | White |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 13200 lm |
| Type of wiring | Ending |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Total harmonic distortion | 0.06 |
| Photobiological safety according to EN 62471 | RG1 |
| Degree of protection (NEMA) | Other |
| Filament test according to IEC 60695-2-11 | 960 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | Other |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 40.3 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 23 |
| Max. number of luminaires per miniature circuit breaker B16 | 23 |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | 50 % |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | No |
| Power factor | 0.99 |
Downloads
Description
Clever combination of spotlight and pole luminaire in one. Housing made of corrosion-resistant die-cast aluminium, seawater resistant powder-coated. Tilt angle can be adjusted and locked in 5 degree steps featuring angular scale. With membrane valve as a standard to avoid condensed water. Cover clear single-pane toughened glass, edge printed. Cover screwed to housing. Lens system made of plastic (PMMA). Replaceable LED spot modules according to ZHAGA standards. Asymmetrical narrow beam light distribution for area lighting (e.g. parking lots, loading zones) Constant light output (CLO). Converter compatible with DC. With NFC programming interface. Pre-assembled connection cable, length 8 m. 1 x Zhaga socket (Book 18) on bottom. The integrated Zhaga base allows sensors and light management systems to be retrofitted without the need for tools. Modular design: Mounting set must be ordered separately.
