Phoenix Contact

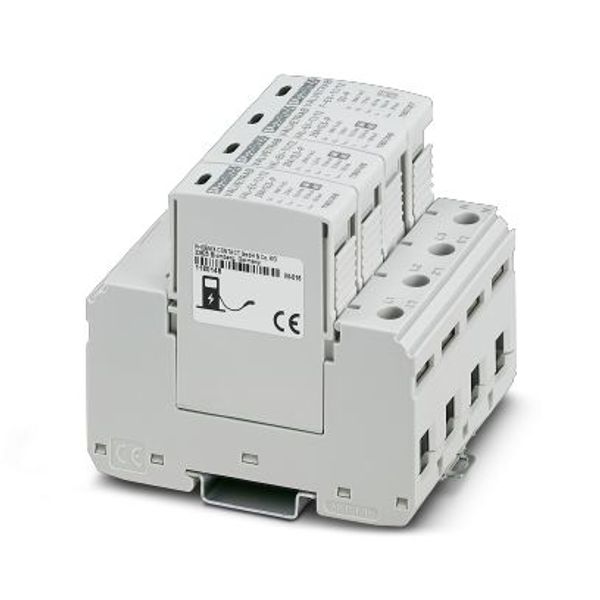

VAL-EV-T1/T2 264/12.5/3+1 - Lightning/surge arrester type 1/2

Order only
Price (excl. VAT):
165,31 € per pcs
This price is valid until 24.12.26
EAN: 4063151215149
MPN: 1180149
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name VAL-EV-T1/T2 264/12.5/3+1 - Lightning/surge arrester type 1/2
Brand Phoenix Contact
Categories Surge Protection Devices (SPD)
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 3030 00
Mounting method Other
Lightning impulse current (10/350 µs) 12.5 kA
Voltage protection level 1.7 kV
Follow current extinguishing capability 0.1 kA
Max. continuous voltage AC 264 V
Nominal discharge surge current (8/20) 12.5 kA
Nominal voltage AC 0 V
Nominal voltage DC 0 V
Category type 1 Yes
Voltage protection level L-N 1.2 kV
Max. continuous voltage DC 0 V
Voltage protection level N-PE 0 kV

Packing details

Packing level 1 4063151215149, 4063151215149

Other Technical data

With remote signalling contact No
Number of conductors (without earthing) 0
Construction size Other
Exhausting No
Signalling at the device Optic
Max. conductor cross section solid (solid, stranded) 35 mm²
Max. conductor cross section flexible (fine-strand) 25 mm²
Voltage protection level (DC+ - DC-) 0 kV
Voltage protection level (DC+/DC- - PE) 0 kV
Specific energy (W/R) 0 kJ/Ohm
System configuration DC No
System configuration IT No
System configuration TN No
System configuration TN-C No
System configuration TN-S Yes
System configuration TT No
System configuration other No
System configuration TN-C-S No

Description

CHARX protect advanced: Plug-in lightning surge/surge protective device, in accordance with Type 1/2 / Class I/II, for 3-phase power supply networks with separate N and PE (5-conductor system: L1, L2, L3, N, PE). Specifically designed for use in e-mobility.
