Lighting Controls and Connectivity

Name: Lighting Controls and Connectivity
Brand: Tridonic
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Lighting Controls and Connectivity
Brand	Tridonic
Harmonized System Code	8517 6200 00
ETIM	EC000533
Model	Control unit

Packing details

Packing level 1

9006210771717, 9006210771717

Other Technical data

Width	79.7 mm
Height	38.5 mm
Depth	79.7 mm
Diameter	79.7 mm
IFTTT support available	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No

Description

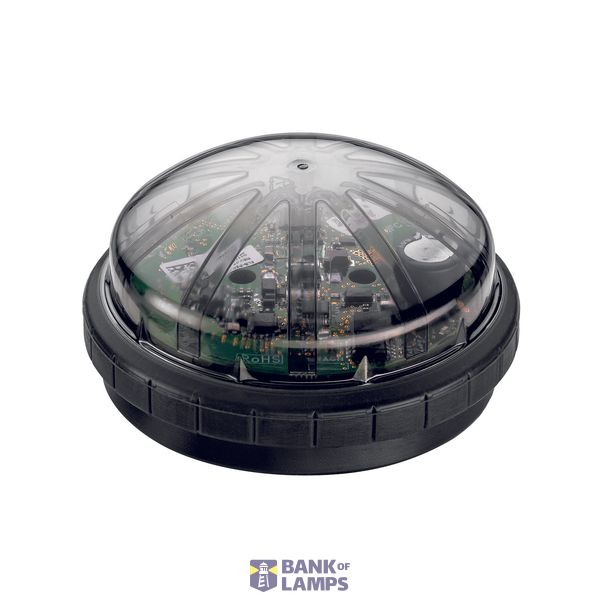

First Zhaga-D4i certified control device ¦ Monitor and control of public lighting supporting the Zhaga-D4i standard ¦ Powered by AUX Power supply as specified by the DiiA ¦ Low energy consumption using device to device IPv6/6LoWPAN technology ¦ Supporting the 868 MHz narrow band frequency ¦ GPS version for easy commissioning by visual representation in the user interface and acting as a master clock ¦ For use in full self-healing mesh networks with up to 300 nodes ¦ Fast data rate transmission with up to 100 kbps ¦ Integrated ambient light measurement ¦ Ready for Zhaga Book 18 Ed. 3 receptacle for easy and flexible installation to luminaire ¦ Lifetime up to 100,000 h at tc = 72 °C ¦ 8 years guarantee in combination with Tridonic LED driver PRE3 (other case 5 years guarantee) (conditions at www.tridonic.com) ¦ Casing: Transparent smoke grey ¦ Type of protection up to IP66 ¦ Impact protection ≤ IK09 ¦ Innovative: First RF Multi-Master Controller based on Zhaga receptacle using Paradox IPv6 6LoWPAN mesh technology ¦ User friendly: Fast and easy connectivity upgrade of Luminaire equipped with Zhaga Book 18 Ed. 3 interface ¦ Reliable: Self healing mesh network for a stable and secured operation ¦ Safe: Pressure equalizing membrane to handle quick temperature changes in outdoor conditions ¦ Urban Cities focused on Streetlight with a Zhaga interface to build up multi networks
