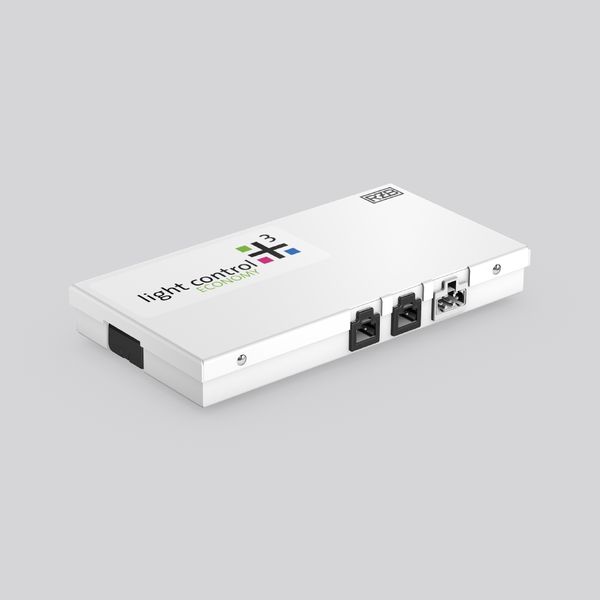

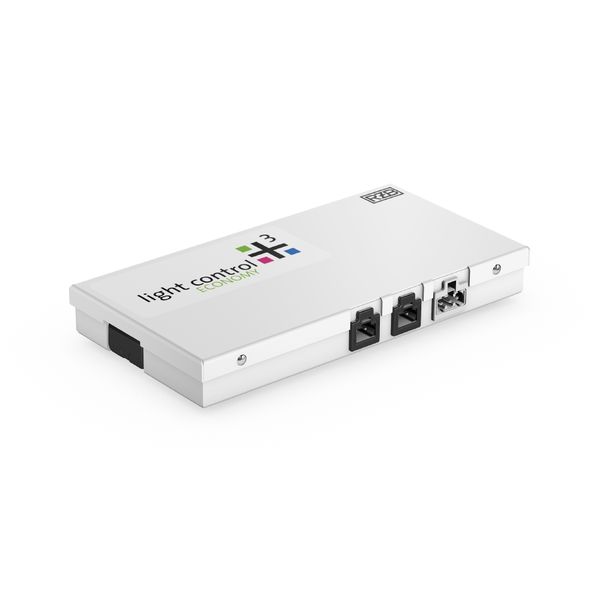

Light management, LMS L 206 B 106 H 30 colour: white 220 - 240 V

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

429,07 €

This price is valid until 24.12.25

EAN: 4051859577843

MPN: 981903.002.2S2

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Light management, LMS L 206 B 106 H 30 colour: white 220 - 240 V
Brand	RZB
Categories	Push Buttons
Country of origin	DE
Harmonized System Code	8537 1098 00
Model	Light control system set

Packing details

Packing level 1

4051859577843, 4051859577843

Other Technical data

Width	106 mm
Height	30 mm
Depth	206 mm
IFTTT support available	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No

Downloads

Mounting instruction

Description

Light management system with DALI interface. Housing: metal, powder-coated, for universal mounting, ready to plug in (GST15 plug included). Control and adjustment of all setting options for the lighting by smartphone. Integrated clock for time-controlled brightness or colour temperature control (HCL). Adaptable HCL characteristic with up to 24 points. Daylight-dependent control and presence-dependent light control. Pushbutton interface for separate operation of brightness and colour temperature. Control of standard white or tunable white light in accordance with DALI device type 8 (DT8). One DALI output channel (broadcast or groupcast). Suitable for up to 32 DALI luminaires. Outputs with electronically reversible overtemperature, short-circuit and overload protection. Integrated DALI bus supply. Length of the DALI control cable up to 300 m. Supports up to 4 DALI sensors (982757.002) and pushbutton couplers (982755.002). Including a light and presence sensor and an installation housing. Other sensors and pushbutton couplers are available as accessories and must be ordered separately. Up to 50 m cable length to button. Scenarios can be called up via pushbutton coupler. Wireless firmware update by Bluetooth® possible.
