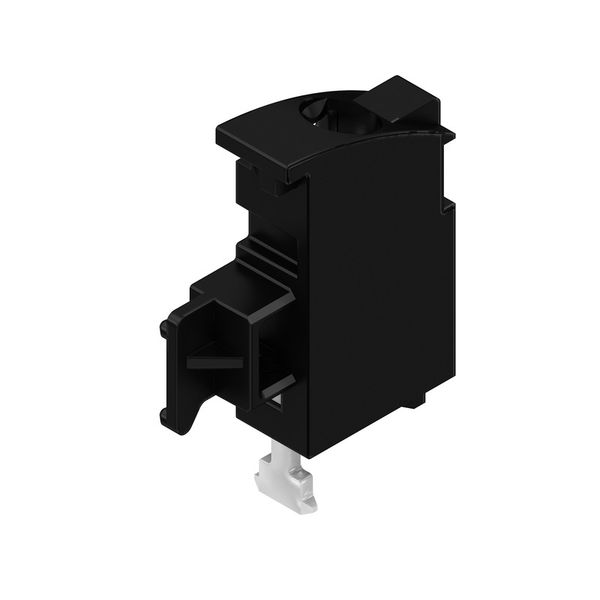

Printed circuit board terminals, Connection element, right, block assembly, closed side, THR solder connection, 0.00 mm, Number of poles: 1, Solder pin length (l): 1.5 mm, tinned, black, Tape
Order only
Minimal order quantity: 432
Price (excl. VAT):
1,41 €
Subtotal: 609,12 €
MOQ: 432
EAN: 4032248984343
MPN: 2418590000
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Printed circuit board terminals, Connection element, right, block assembly, closed side, THR solder connection, 0.00 mm, Number of poles: 1, Solder pin length (l): 1.5 mm, tinned, black, Tape |
| Brand | Weidmüller |
| Categories |
PCB Connectors & Terminals
|
| Country of origin | SK |
| Harmonized System Code | 8536 9010 00 |
| Rated voltage | 320 V |
| Number of levels | 1 |
| Rated surge voltage | 4 kV |
| Degree of protection (IP), mounted | IP20 |
| Angle PCB/conductor connection | 0°/180° (horizontal) |
| Rated current In | 13 A |
| Number of electrical connections | 1 |
Packing details
| Packing level 1 | 4032248984343 |
Other Technical data
| Height | 16.98 mm |
| Colour housing | Black |
| Operating temperature | -40-120 °C |
| Type of fastening | Solder |
| Inflammability class of insulation material according to with UL94 | V0 |
| Over voltage category | II |
| Pollution degree | 2 |
| Connection type conductor | Screw connection |
| Connection type PCB | THR connection |
| Length pin | 1.5 mm |
| Type of banding | Other |
| Connectable conductor cross section solid-core | 0.2-2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.2 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.2-2.5 mm² |
| Material insulation body | Liquid crystal polymer |
| Type of PCB fastening | Other |
Description
PCB terminal block (print terminal, board terminal) for simple and safe data transmission directly to the PCB.
