LFP3000-G3-824-03

Order only

Price (excl. VAT):

321,65 €

This price is valid until 24.12.26

Split box: 10,00 €

EAN: 4052899481299

MPN: 4052899481299

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	LFP3000-G3-824-03
Brand	OSRAM
Categories	Light ribbon-/hose/-strip
Country of origin*	NL
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.

Packing details

Packing level 1

4052899481299

Description

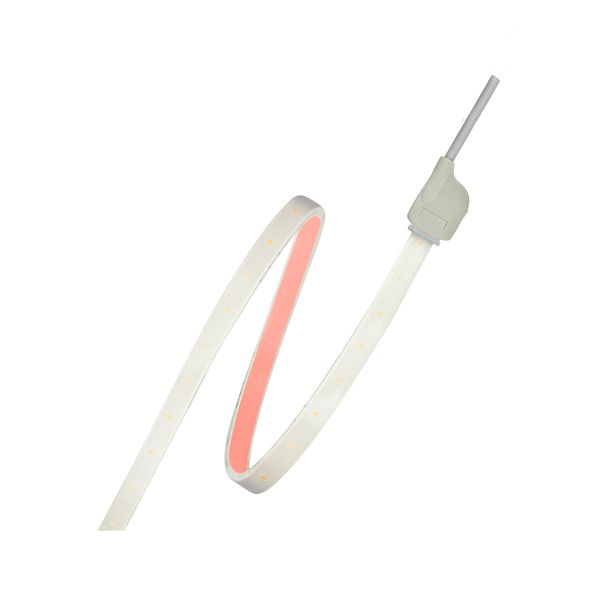

LFP3000-G3-824-03. Main function: integrated light ribbon/strip/hose for illumination systems, flexible use in custom or modular setups, fits configurations requiring linear lighting. Works well for accent lines, low-profile design applications. Voltage range steady at 24V, current draw depends on length but rated max 3A per module section. Cut-points spaced at standard intervals (every ~10cm), simplifies adaptability when trimming to fit system lengths. Tested thermal tolerance up to 55°C continuous ambient exposure—higher risks degradation quickly. Connector compatible w/ most G3-standard couplings. Physical housing: translucent silicone-type coating protects LEDs, IP67-rated against dust/moisture ingress; conformable across curves with minor bending radius limitations (~30mm). Strip width measures approx 8mm with adhesive backing pre-installed for direct mounting setup—no additional hardware needed if adhesion surface is clean/smooth/stable enough. Technical Notes: -Type designation LFP3000 conductive strip series. -LED density rated ~60 LEDs/m output @ >850lm depending power source stability. -Beam angle uniform distribution set approx ~120°. -Wavelength spectrum peak around 4000–4200K CCT neutral white tone output preferred mid-level bright regions applications.
