LFP1100TW-G5-825.940-09 L2

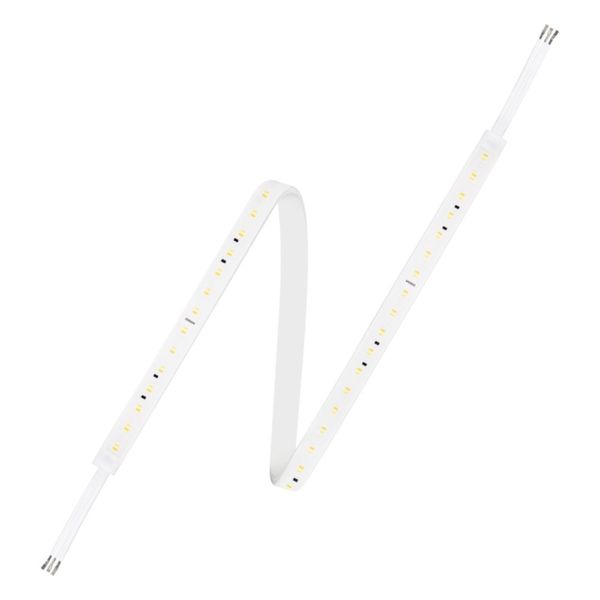

Part of the lighting configuration, flexible illumination hose/strip used for architectural setups or integrated designs. Compatible with modular systems requiring tuneable white outputs between 825 lm/m to 940 lm/m. Thermal management may need review depending on installation environment due to potential heat retention in dense layouts. Power input nominal: DC voltage at 24V direct, current draw max @ full brightness. Length marked standard at L2 spec (~2 meters). Cutting intervals approx every ~100mm per manufacturer data—could be shorter with precise tools but voids warranty if incorrect handling occurs. Connectors pre-mounted: dual ends (feed + cap). Strip width narrow spec ~11mm total including adhesives; bend radius within tolerance for tight curves but not recommended under draught-heavy spaces without mechanical supports—drift risk high over time if poor mounting applied (note adhesive type limits permanent fixes). Raw specs — Item code: LFP1100TW-G5-825.940-09-L2. Color temp ranges: Tuneable White from 2700K to 6500K. Output flux range: typ min/max = 825lm–940lm/m referenced luminous efficacy ~100Lm/W avg estimation applies clean power supply conditions only. Standby consumption negligible unless voltage line shifts above tolerances (-15%/+10%). LED config SMD diodes per meter approx count ≈60 units evenly spaced emitter density strips seem fine condition no visible damages bordering grade A quality LEDs deployed possible V4 upgrade required next batch depends logistics lead QT check soon finish date pending factory channels confirm delay probable end quarter stock fulfillment phase still unclear tracking ID missing status flagged inquiry backorder cycle notes.Mark spare inventory audit flag until resolved analyst shift complete correct discrepancies midday manual notes pending CTO clearance final buffer priority low ⬇ OK keep archived low focus just wait.TAG
