LFD600S-G2-827-06

In stock: No Vendor stock: Yes Minimal order quantity: 1

Price (excl. VAT):

666,51 €

This price is valid until 31.08.25

Split box: 10,00 €

EAN: 4062172270632

MPN: 4062172270632

Package: 1

Box: 6

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	LFD600S-G2-827-06
Brand	OSRAM
Categories	Light ribbon-/hose/-strip

Packing details

Packing level 1	4062172270632
Packing level 2	4062172270632

Description

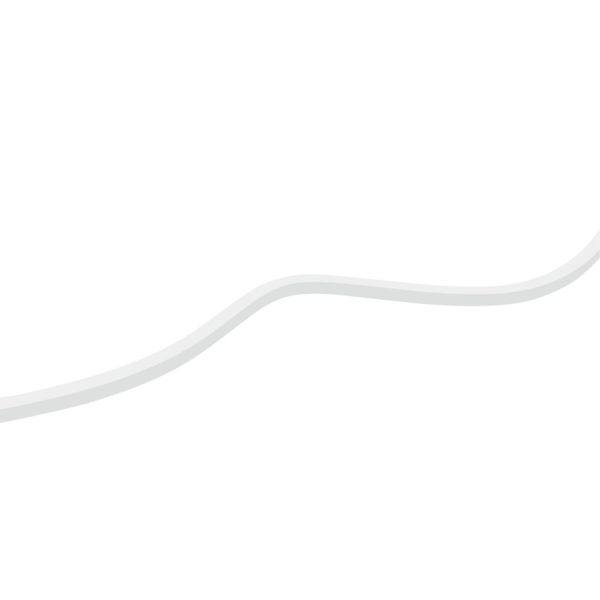

Used for flexible illumination in low-profile applications, the LFD600S-G2-827-06 is a light ribbon/strip designed to deliver warm white lighting in systems needing customizable lengths. Typical use includes architectural accents, undercabinet lighting—tight installs where compact light sources are required. Runs on 24 V DC input. Power consumption 14 W per meter (approx). Max continuous length seems capped at 5 meters before voltage drop becomes noticeable. Cuttable sections every ~100 mm give flexibility during install but watch connector compatibility—some don't mate cleanly if misaligned. LED pitch dense enough to minimize shadowing (~120 LEDs/m). Tested brightness hits around 600 lm/m; might shift warmer under extended runtime due to heat dissipation characteristics. Physical format: PCB width measures about 8 mm—or that's what it looked like—with adhesive backside, peel-and-stick type. Color temp rated at "2700K", subjective test shows close match but can look slightly yellower under direct power-up conditions vs datasheet photos. Notes: Input—24 V DC mandatory supply, Power draw—14 W/m, Length limit hard stop ~5 m (@ max performance), Cut intervals ~100 mm spacing, Adhesive backing pre-applied, SMD-based LEDs array tightly spaced (~120 pcs per meter).
