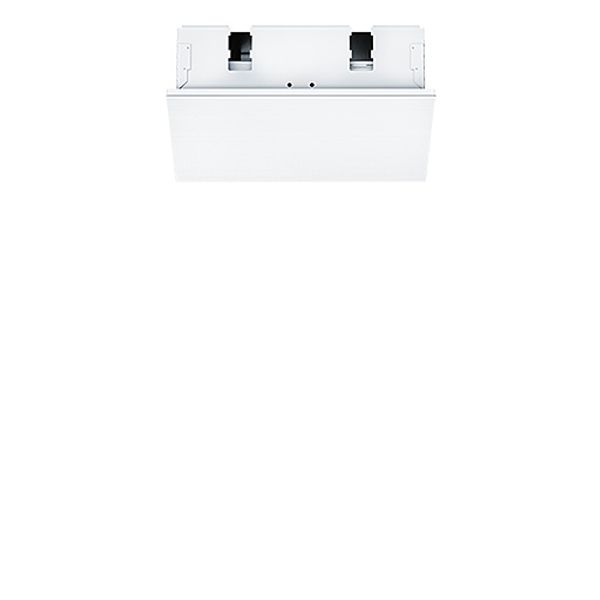

LF3 E 1600-840 M625M EVG KA WH - Recessed luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 9010299878199
MPN: 42940087
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | LF3 E 1600-840 M625M EVG KA WH - Recessed luminaire |
| Brand | Zumtobel |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps Built-in mounting lamps |
| Country of origin | AT |
| Harmonized System Code | 9405 1190 00 |

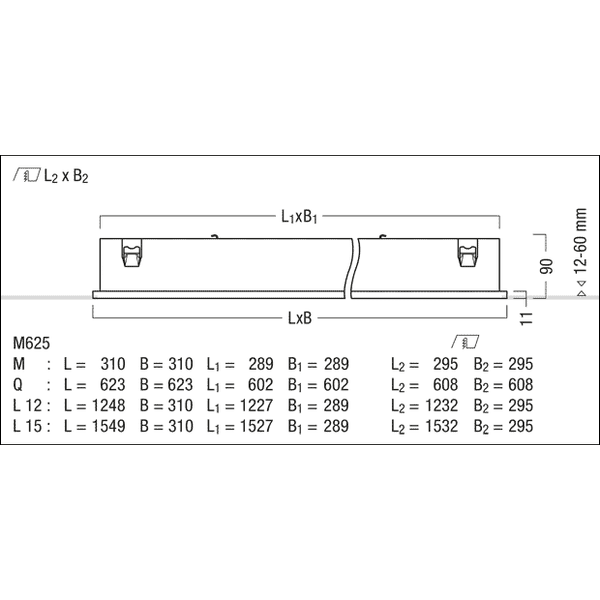

| Width | 310 mm |
| Colour housing | White |
| Colour rendering index CRI | 80-89 |
| Length | 310 mm |
| Height/depth | 90 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 12.9 W |
| Rated luminous flux according to IEC 62722-2-1 | 1610 lm |
| Luminaire efficacy | 125 lm/W |
Packing details
| Packing level 1 | 9010299878199, 9010299878199 |
Other Technical data
| Protection class | I |
| Lamp holder | Other |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC |
| With movement sensor | No |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| Built-in width | 300 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Steel |
| Built-in length | 300 mm |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | No |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 17 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 66 |
| Max. number of luminaires per miniature circuit breaker B16 | 40 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 95 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 95 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 79 mm |
| Power factor | 0.97 |
Downloads
Description
Recessed ceiling luminaire with frameless look, 100% uniform illumination, laser-welded MPO+ micropyramidal optic with light accent. Luminaire input power: 12.9 W, electronic ballast with LED converter; LED service life lasts 50000 h before luminous flux is reduced to 90 % of the initial value. Chromaticity tolerance (initial MacAdam): 3. Luminaire luminous flux: 1610 lm, Luminaire efficacy: 125 lm/W. Colour rendering Ra > 80, colour temperature 4000 K. Light guided via backlit multilayer MPO+ micropyramidal optic with seamless look and defined light emission for glare-free light distribution with UGR < 16 and L65 < 1500 cd/m² as per EN 12464:2011; reduced luminance at steep angles specifically designed to cut glare on tilted displays and allow maximum flexibility; evenly spaced LED light points; laser-welded light chamber ensures touch protection and prevents entry of insects and dirt particles; simple cleaning due to smooth outer cover of high grade polymethylmethacrylate; flat luminaire housing made of sheet steel with all-round optic frame made of plastic, white; Luminaire with external electrical connection; Installation as single luminaire or as cluster, designed to fit in cut ceiling apertures and in modular ceilings with concealed or visible joist system; please order fixing kit separately; Luminaire wired with halogen-free leads; Modul: 625; Dimensions: 310 x 310 x 90 mm, weight: 1.9 kg.
