LF1200S-G5-822-10 L2

Name: LF1200S-G5-822-10 L2
Brand: OSRAM
Price: 569.930 EUR
Availability: Discontinued

Order only Discontinued

Price (excl. VAT):

569,93 €

This price is valid until 24.12.26

Split box: 10,00 €

EAN: 4062172170277

MPN: 4062172170277

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	LF1200S-G5-822-10 L2
Brand	OSRAM
Categories	Light ribbon-/hose/-strip
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8539 2198 00

Packing details

Packing level 1

4062172170277

Description

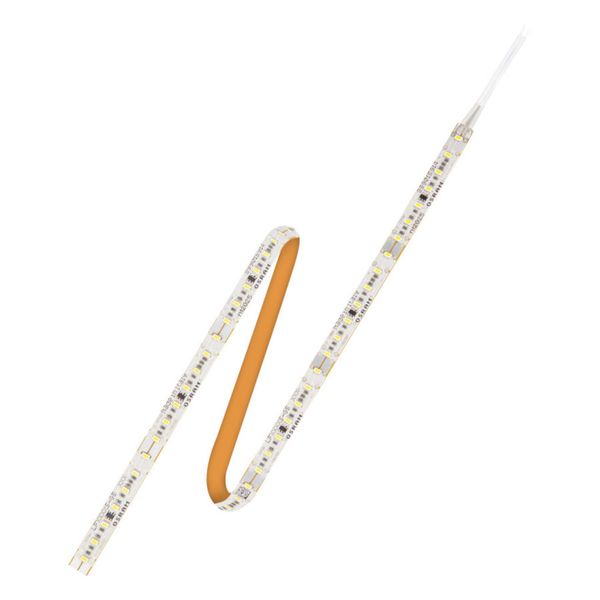

LF1200S-G5-822-10 L2 — modular light ribbon component. Used in scalable ambient lighting setups or dense hose-driven layouts requiring flexible LED integration for customized illumination. Fits into systems with multi-pattern outputs, good lifespan focus. 12V DC input rating — low consumption, suitable for long spans where consistent power flow needed. Slim profile: adaptable for tight installations like concealed strips or compact runs inside fixtures. Required adapter secondary side compatible; driver pairing important at setup stage. Physical length ~1200mm per unit, cuttable sections marked every 50mm (double-check these markers), uses adhesive backing (included). IP20 ingress protection—watch placement zones carefully under humidity risks. Specs note block: Beam angle ~120°, white temperature 822 designation warm white (~2200K), luminous flux 1000–1100lm/m, CRI >90, lifetime expectancy reported near 30k hrs standard use, not dim-control enabled without additional mods/modules, FPC substrate base fabrication, soldering pads on segment ends clearly visible and isolated but need clean prep before joining
